2CPX037606R9999

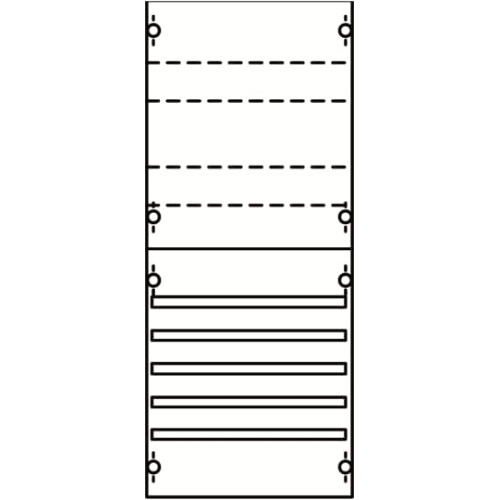

1V02A Busbar und terminals 600 mm x 250 mm x 120 mm , 0 , 0

Manufacturer's No: 37606     Manufacturer: ABB
1V02A Busbar und terminals 600 mm x 250 mm x 120 mm , 0 , 0

Availability On Request

£325.05
  • Busbar and terminals with an interior fitting system
  • Dimensions: 600 mm x 250 mm x 120 mm
  • Distribution panels mounted on EDF-Profile
  • Grid unit: 4 GU = 600 mm, panel width 1 = 250 mm
  • 48 Space units with 5-pole busbar system
  • Busbar alignment: horizontal with busbar holders ZB5
  • Busbar center distance: 40 mm with 5 Cu busbars
  • Rated current maximum: 360 A
  • Covers made of plastic with 90-degree press and turn closure, RAL 7035
  • Design of the cover: Closed, usable from a cabinet depth of 120 mm

Read more

  • Distribution panels or combinations must match the grid units of the cabinets
  • For floor-standing and switchgear cabinets, two panels or combinations must be installed side by side
  • EDF profile rails included in the delivery


Product

Manufacturer Material ID -
37606
Net Weight -
3.54kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Depth -
120 Millimetre
Height -
600 Millimetre
Number of DIN rails -
0
Number of modular spacings per DIN-rail -
0
Type of covering -
Closed
Width -
250 Millimetre
With cover -
ABB

Availability On Request

£325.05
