2CPX037607R9999

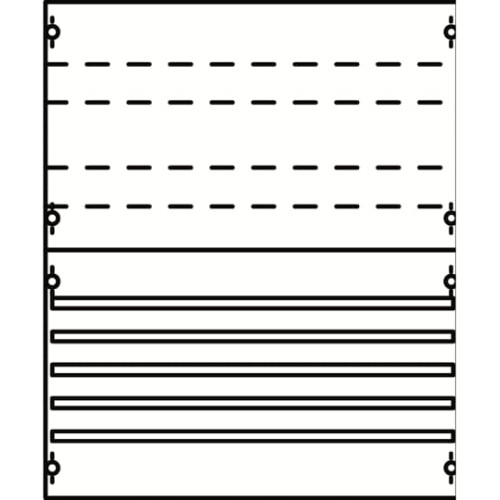

2V02A Busbar und terminals 600 mm x 500 mm x 120 mm , 0 , 0

Manufacturer's No: 37607     Manufacturer: ABB
2V02A Busbar und terminals 600 mm x 500 mm x 120 mm , 0 , 0

Availability On Request

£490.67
  • Busbar and terminals system
  • Interior fitting system for distribution panels
  • Dimensions: 600 mm x 500 mm x 120 mm
  • Grid unit: 4 GU = 600 mm
  • Panel width: 500 mm
  • 96 Space units
  • Busbar system: 5-pole
  • Busbar alignment: horizontal
  • Busbar holders: ZB5
  • Busbar center distance: 40 mm

Read more

  • 5 Cu busbars with a rated current maximum of 360 A
  • Covers made of plastic with 90-degree press and turn closure
  • RAL 7035 color
  • Cover design: Closed
  • Usable for cabinet depth of 120 mm
  • Distribution panels or combinations must match the grid units of the cabinets
  • For floor standing and switchgear cabinets, two panels or combinations must be installed side by side
  • EDF profile rails included in the delivery


Product

Manufacturer Material ID -
37607
Net Weight -
6.16kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Depth -
120 Millimetre
Height -
600 Millimetre
Number of DIN rails -
0
Number of modular spacings per DIN-rail -
0
Type of covering -
Closed
Width -
500 Millimetre
With cover -
ABB

Availability On Request

£490.67
