2CPX037609R9999

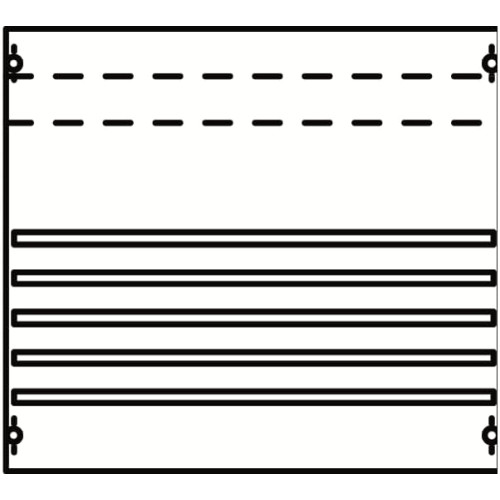

2V002A Busbar und terminals 450 mm x 500 mm x 120 mm , 0 , 00

Manufacturer's No: 37609     Manufacturer: ABB
2V002A Busbar und terminals 450 mm x 500 mm x 120 mm , 0 , 00

Availability On Request

£444.01
  • Interior fitting system for distribution panels
  • Dimensions: 450 mm x 500 mm x 120 mm
  • Grid unit: 3 GU = 450 mm
  • Panel width: 500 mm
  • 72 Space units
  • Busbar system: 5-pole, horizontal alignment
  • Busbar holders: ZB5, center distance 40 mm
  • 5 Cu busbars, rated current max. 360 A
  • Plastic covers with 90-degree press and turn closure, RAL 7035
  • Cover design: Closed, usable from cabinet depth of 120 mm

Read more

  • Panels must match cabinet grid units
  • For floor standing and switch gear cabinets, install two panels side by side
  • EDF profile rails included in delivery


Product

Manufacturer Material ID -
37609
Net Weight -
4.37kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Depth -
120 Millimetre
Height -
450 Millimetre
Number of DIN rails -
0
Number of modular spacings per DIN-rail -
0
Type of covering -
Closed
Width -
500 Millimetre
With cover -
ABB

Availability On Request

£444.01
