2CPX037656R9999

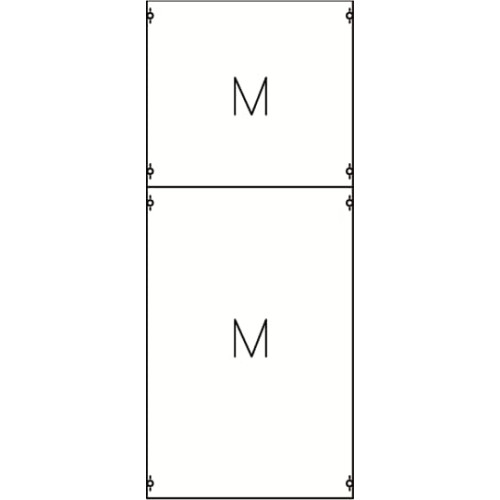

2M4A Mounting plate 1200 mm x 500 mm x 120 mm , 0 , 4

Manufacturer's No: 37656     Manufacturer: ABB
2M4A Mounting plate 1200 mm x 500 mm x 120 mm , 0 , 4

Availability On Request

£720.03
  • Mounting plate dimensions: 1200 mm x 500 mm x 120 mm
  • Interior fitting system for distribution panels
  • Grid unit: 8 GU = 1200 mm, panel width 2 = 500 mm
  • 192 Space units
  • Mounting plates made of 2 mm sheet steel
  • Stepless adjustable via mounting bracket
  • Usable depth of 143 mm
  • Plastic covers with 90-degree press and turn closure, RAL 7035
  • Cover design: Closed
  • Usable as of cabinet depth of 120 mm

Read more

  • Distribution panels must match cabinet grid units
  • For floor standing and switch gear cabinets, install two panels or combinations side by side
  • EDF profile rails included in delivery


Product

Manufacturer Material ID -
37656
Net Weight -
13.32kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Type of cover -
Closed
Depth -
120 Millimetre
Height -
1200 Millimetre
Number of DIN rails -
0
Number of modular spacings per DIN-rail -
0
Type of covering -
Closed
Width -
500 Millimetre
With cover -
With mounting plate -
ABB

Availability On Request

£720.03
