2CPX037809R9999

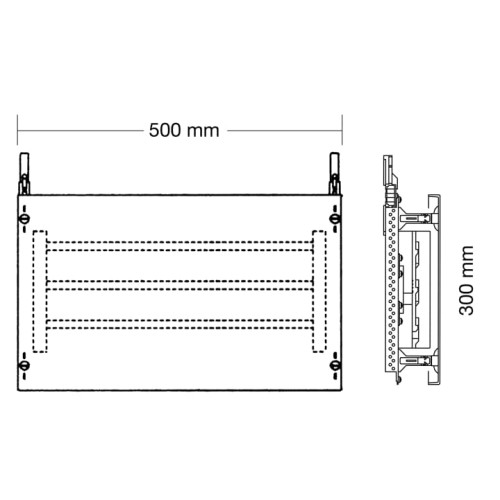

ED56A busbars 300 mm x 500 mm x 200 mm , 0 , 000

Manufacturer's No: 37809     Manufacturer: ABB
ED56A busbars 300 mm x 500 mm x 200 mm , 0 , 000

Availability On Request

£312.24
  • Busbars: 300 mm x 500 mm x 200 mm
  • Interior fitting system with Combi-Sets
  • EDF-Profile mounting for busbars
  • Grid unit: 2 GU = 300 mm, panel width 2 = 500 mm
  • 48 Space units with 3-pole busbar system
  • Busbar alignment: horizontal with busbar holders ZB5
  • Busbar center distance: 60 mm
  • 3 Cu busbars, rated current max 360 A
  • Plastic covers with 90-degree press and turn closure, RAL 7035
  • Usable from cabinet depth of 200 mm

Read more

  • Combination sets plug into distributor panel at top or bottom
  • EDF profiles and field connectors included in delivery


Product

Manufacturer Material ID -
37809
Net Weight -
3.06kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
60 Millimetre
Busbar height -
12 Millimetre
Busbar position -
Centre central
Busbar thickness -
5 Millimetre
Depth -
200 Millimetre
Height -
300 Millimetre
Max. rated current -
360 Ampere
Number of poles -
3
Short-circuit breaking capacity (Icw) -
28 kiloampere
Width -
500 Millimetre
With cover -
ABB

Availability On Request

£312.24
