2CPX037810R9999

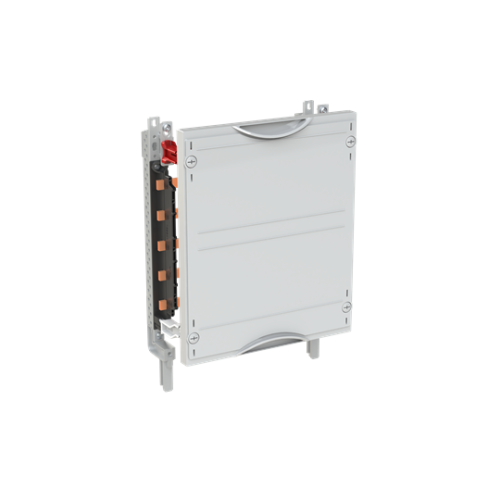

ED61SA busbars 300 mm x 250 mm x 200 mm , 0 , 000

Manufacturer's No: 37810     Manufacturer: ABB
ED61SA busbars 300 mm x 250 mm x 200 mm , 0 , 000

Availability On Request

£192.26
  • Busbars: 300 mm x 250 mm x 200 mm
  • Interior fitting system with Combi-Sets
  • Grid unit: 2 GU = 300 mm, panel width 1 = 250 mm
  • 24 Space units with 5-pole busbar system
  • Busbar alignment: horizontal, center distance of 40 mm
  • 5 Cu busbars, rated current maximum 360 A
  • Plastic covers with 90-degree press and turn closure, RAL 7035
  • Usable with cabinet depth of 200 mm
  • Combination sets plug into distributor panel at top or bottom
  • EDF profiles and field connectors included in scope of delivery


Product

Manufacturer Material ID -
37810
Net Weight -
2.29kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
40 Millimetre
Busbar height -
12 Millimetre
Busbar position -
Centre central
Busbar thickness -
5 Millimetre
Depth -
200 Millimetre
Height -
300 Millimetre
Max. rated current -
360 Ampere
Number of poles -
5
Short-circuit breaking capacity (Icw) -
10 kiloampere
Width -
250 Millimetre
With cover -
ABB

Availability On Request

£192.26
