2CPX037811R9999

ED62SA busbars 300 mm x 500 mm x 200 mm , 0 , 000

Manufacturer's No: 37811     Manufacturer: ABB
ED62SA busbars 300 mm x 500 mm x 200 mm , 0 , 000

Availability On Request

£310.09

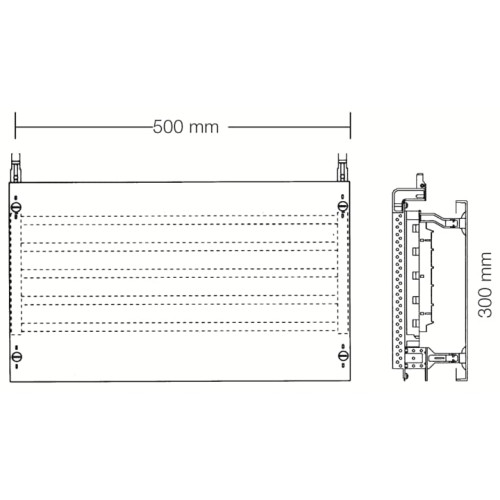

  • ED62SA busbars: 300 mm x 500 mm x 200 mm
  • Interior fitting system for busbars
  • Combi-Sets mounted on EDF-Profile
  • Grid unit: 2 GU = 300 mm, panel width 2 = 500 mm
  • 48 Space units with busbar system 5-pole
  • Busbar alignment: horizontal with busbar holders ZB5
  • Busbar center distance: 40 mm with 5 Cu busbars
  • Rated current maximum: 360 A
  • Covers made of Plastic with 90-degree press and turn closure, RAL 7035
  • Usable from cabinet depth of 200 mm

Read more

  • Combination sets can be plugged into the distributor panel at the top or bottom and mounted on the other side of the cabinet
  • EDF profiles and field connectors included in the scope of delivery


Product

Manufacturer Material ID -
37811
Net Weight -
3.93kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
40 Millimetre
Busbar height -
12 Millimetre
Busbar position -
Centre central
Busbar thickness -
5 Millimetre
Depth -
200 Millimetre
Height -
300 Millimetre
Max. rated current -
360 Ampere
Number of poles -
5
Short-circuit breaking capacity (Icw) -
10 kiloampere
Width -
500 Millimetre
With cover -
