3807135

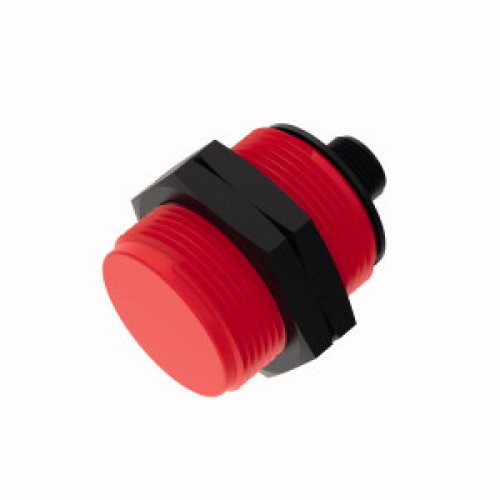

Magnetic Switch: 30 Barrel Sensor, Repeat Switching Accuracy: +/- 0.1, Dimensions: 30 Barrel, 4-pin M12 Integral QD, Used With Mod

Manufacturer's No: SI-MAGB3SMQD     Manufacturer: Turck Banner
Magnetic Switch: 30 Barrel Sensor, Repeat Switching Accuracy: +/- 0.1, Dimensions: 30 Barrel, 4-pin M12 Integral QD, Used With Model: SI-MAGB3MM

Availability In Stock

POA
  • Safety Switches: Magnetic type
  • Max. Range: 14 mm
  • Contactless switch
  • Tamper-proof with coded magnets
  • Requires coded magnets SI-MAGB3MM for operation
  • Safety Integrity Level (SIL): SIL 3 (IEC 61508)
  • Performance Level (PL): PL e (ISO 13849-1)
  • Contacts: 1 normally closed (NC) contact, 1 normally open (NO) contact


Product

Manufacturer Material ID -
SI-MAGB3SMQD
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Degree of protection (IP rating) -
IP67
Housing material -
Plastic
Turck Banner

Availability In Stock

POA
