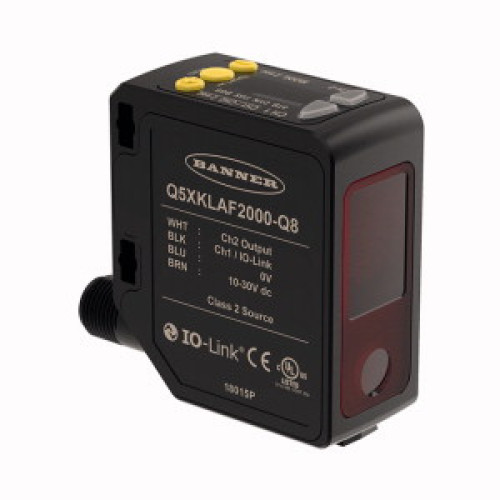

Q5X Series: Laser Adjustable Field, Range: 50-5000, Input: 10-30 V dc, Output: 1 PNP/NPN with IO-Link, 1 PNP/NPN Multi-Function I/

Manufacturer's No: Q5XKLAF5000-Q8     Manufacturer: Turck Banner
Q5X Series: Laser Adjustable Field, Range: 50-5000, Input: 10-30 V dc, Output: 1 PNP/NPN with IO-Link, 1 PNP/NPN Multi-Function I/O, 4-pin M12 Rotatable QD

Availability On Request

POA
  • Photoelectric Sensor with Laser Diffuse Mode
  • Adjustable Background Suppression
  • Operating Voltage: 10-30 VDC
  • Max. Range: 5000 mm
  • 4-Digit 7-Segment Display
  • Adjustable via Pushbutton or IO-Link
  • Protection Class: IP67
  • Connector: M12 x 1 male, 4-pin, rotatable
  • Laser Class 2, 650 nm
  • Range: 50-5000 mm

Read more

  • Adjustable Response Time: 3, 5, 15, 25, or 50 ms
  • Output 1: PNP/NPN switching output with IO-Link communication
  • Output 2: PNP/NPN switching output with teach-in input, laser control, synchronization, or pulse frequency modulation (PFM)


Product

Manufacturer Material ID -
Q5XKLAF5000-Q8
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
41111926

Technical Specification

Adjustment range -
50 Millimetre
Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

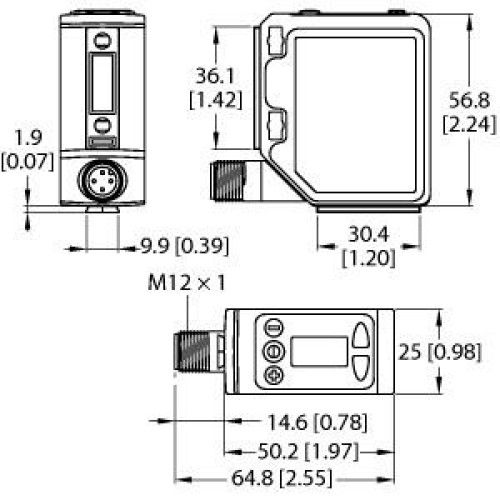

Height of sensor -
59.6 Millimetre
Housing material -
Plastic
Laser protection class -
Class 2
Length of sensor -
52 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
5000 Millimetre
Rated switching distance -
5000 Millimetre
Reaction time -
3 Millisecond
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
650 Nanometre
Width sensor -
25 Millimetre
