3KC03302NE000AA0

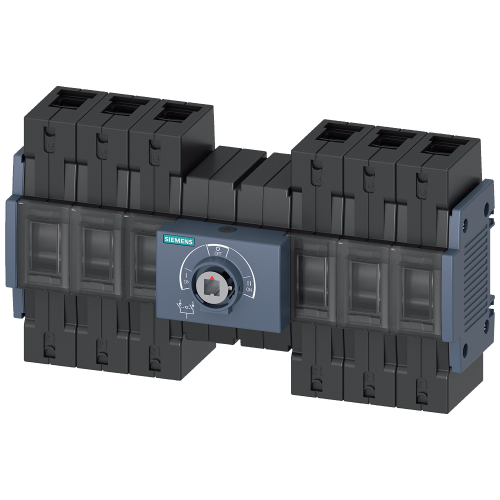

SENTRON, 3KC transfer switching equipment, manually operated, MTSE, size: 2, 3-pole, Iu: 100 A

Manufacturer's No: 3KC0330-2NE00-0AA0     Manufacturer: Siemens
SENTRON, 3KC transfer switching equipment, manually operated, MTSE, size: 2, 3-pole, Iu: 100 A

Availability On Request

£216.18
  • Product: SENTRON 3KC Transfer Switching Equipment
  • Operation: Manually operated
  • Model: MTSE, Size 2, 3-pole
  • Rated Current: Iu 100 A
  • Rated Voltage: Ue AC 415 V
  • Rated Current at AC-33 B (415 V): 100 A
  • Rated Current at AC-23 A (690 V): 100 A
  • Installation: Screw and standard mounting rail, 35 mm
  • Operating Mechanism: Front-operated, centered, without handle
  • Terminal Type: Box terminal

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KC0330-2NE00-0AA0
Net Weight -
2.20kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Switching power at 400 V -
- Kilowatt
Type of control element -
None
Suitable for distribution board installation -
Suitable for intermediate mounting -
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Other
Degree of protection (IP), front side -
IP20
Max. rated operation voltage Ue AC -
415 Volt
Number of auxiliary contacts as change-over contact -
8
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Rated operation power at AC-23, 400 V -
55 Kilowatt
Rated permanent current at AC-21, 400 V -
100 Ampere
Rated permanent current at AC-23, 400 V -
100 Ampere
Rated permanent current Iu -
100 Ampere
Rated short-time withstand current lcw -
4 kiloampere
Type of electrical connection of main circuit -
Frame clamp
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
