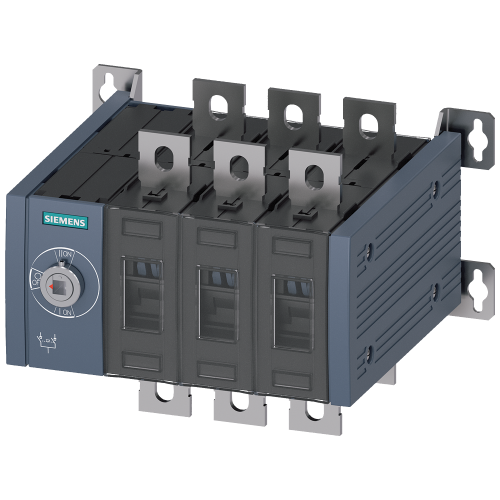

3KC03420PE000AA0

SENTRON, 3KC transfer switching equipment, manually operated, MTSE, size: 3, 3-pole, Iu: 400 A

Manufacturer's No: 3KC0342-0PE00-0AA0     Manufacturer: Siemens
SENTRON, 3KC transfer switching equipment, manually operated, MTSE, size: 3, 3-pole, Iu: 400 A

Availability On Request

£849.40
  • Transfer switching equipment: SENTRON 3KC
  • Operation: Manual
  • Model: MTSE
  • Size: 3
  • Configuration: 3-pole
  • Rated operational current (Iu): 400 A
  • Rated operational voltage (Ue AC): 415 V
  • Rated operational current at AC-33 B (415 V): 315 A
  • Rated operational current at AC-23 A (690 V): 315 A
  • Mounting: Screw

Read more

  • Operating mechanism: Front
  • Handle: Not included
  • Busbar connection

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KC0342-0PE00-0AA0
Net Weight -
6.67kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Switching power at 400 V -
- Kilowatt
Type of control element -
None
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Other
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
415 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
12
Number of auxiliary contacts as normally open contact -
12
Number of poles -
3
Rated operation power at AC-23, 400 V -
220 Kilowatt
Rated permanent current at AC-21, 400 V -
400 Ampere
Rated permanent current at AC-23, 400 V -
400 Ampere
Rated permanent current Iu -
400 Ampere
Rated short-time withstand current lcw -
13 kiloampere
Type of electrical connection of main circuit -
Rail connection
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability On Request

£849.40
