3KC03540RE000AA0

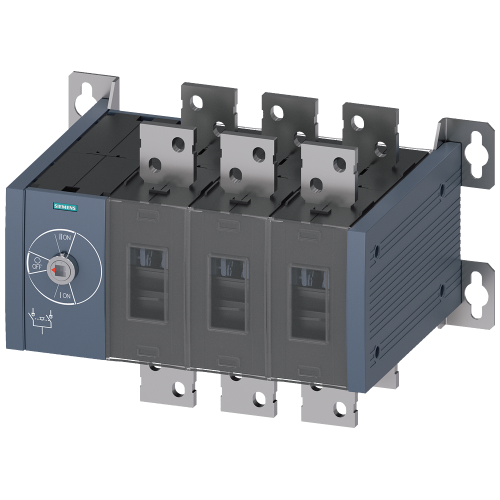

SENTRON, 3KC transfer switching equipment, manually operated, MTSE, size: 5, 3-pole, Iu: 1600

Manufacturer's No: 3KC0354-0RE00-0AA0     Manufacturer: Siemens
SENTRON, 3KC transfer switching equipment, manually operated, MTSE, size: 5, 3-pole, Iu: 1600

Availability On Request

£4,949.65
  • Product: SENTRON 3KC Transfer Switching Equipment
  • Operation: Manually operated
  • Model: MTSE, Size: 5, 3-pole
  • Rated Current: Iu: 1600 A
  • Rated Voltage: Ue AC: 415 V
  • Rated Current at AC-33 B (415 V): 800 A
  • Rated Current at AC-23 A (690 V): 800 A
  • Mounting: Screw mounting
  • Mechanism: Front operating mechanism at the left end
  • Handle: Without handle

Read more

  • Connection: Busbar connection

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KC0354-0RE00-0AA0
Net Weight -
46.50kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
RoHs Compliance -
Yes
UNSPSC -
26101601

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Switching power at 400 V -
- Kilowatt
Type of control element -
None
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Other
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
415 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
16
Number of auxiliary contacts as normally open contact -
16
Number of poles -
3
Rated operation power at AC-23, 400 V -
400 Kilowatt
Rated permanent current at AC-21, 400 V -
1600 Ampere
Rated permanent current at AC-23, 400 V -
1600 Ampere
Rated permanent current Iu -
1600 Ampere
Rated short-time withstand current lcw -
50 kiloampere
Type of electrical connection of main circuit -
Rail connection
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
