3KC04540RE000AA0

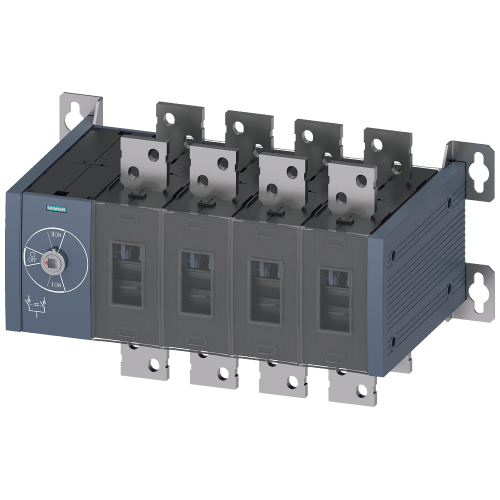

SENTRON, 3KC transfer switching equipment, manually operated, MTSE, size: 5, 4-pole, Iu: 1600

Manufacturer's No: 3KC0454-0RE00-0AA0     Manufacturer: Siemens
SENTRON, 3KC transfer switching equipment, manually operated, MTSE, size: 5, 4-pole, Iu: 1600

Availability On Request

£5,938.04
  • Product: SENTRON Transfer Switching Equipment 3KC
  • Model: MTSE
  • Configuration: 4-pole, Size 5
  • Current Rating: Iu 1600 A
  • Voltage Rating: Ue AC 415 V
  • Operational Current:
    • AC-33 B at 415 V: 800 A
    • AC-23 A at 690 V: 800 A
  • Mounting: Screw mounting
  • Operating Mechanism: Front-operated
  • Handle: Not included
  • Busbar Connection

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KC0454-0RE00-0AA0
Net Weight -
54.50kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Switching power at 400 V -
- Kilowatt
Type of control element -
None
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Other
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
415 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
16
Number of auxiliary contacts as normally open contact -
16
Number of poles -
4
Rated operation power at AC-23, 400 V -
400 Kilowatt
Rated permanent current at AC-21, 400 V -
1600 Ampere
Rated permanent current at AC-23, 400 V -
1600 Ampere
Rated permanent current Iu -
1600 Ampere
Rated short-time withstand current lcw -
50 kiloampere
Type of electrical connection of main circuit -
Rail connection
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability On Request

£5,938.04
