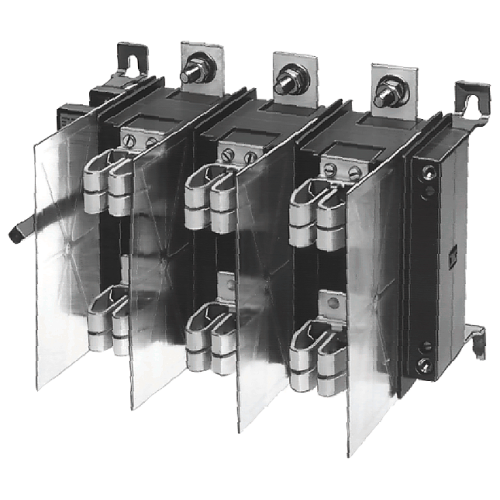

3KL61301AB0

630 A, size 3 and 2, class GG, AM, 3-pole for NH fuse systems

Manufacturer's No: 3KL6130-1AB0     Manufacturer: Siemens
630 A, size 3 and 2, class GG, AM, 3-pole for NH fuse systems

Availability On Request

POA

This product has been superseded by

3KF53630MF11

Please check compatibility before purchasing.

  • 630 A
  • Size 3 and 2
  • Class GG, AM
  • 3-pole
  • For NH fuse systems
  • End of product lifecycle: 15/03/24
  • Successor: 3KF5363-0MF11
  • Different dimensions and some deviating technical values


Product

Manufacturer Material ID -
3KL6130-1AB0
Net Weight -
17.64kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
IN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Rated short-time withstand current lcw -
- kiloampere
Colour control element -
UN
Rated permanent current at AC-21, 400 V -
- Ampere
Switching power at 400 V -
- Kilowatt
Degree of protection (NEMA) -
UN
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated permanent current Iu -
630 Ampere
Number of poles -
3
Degree of protection (IP), front side -
IP00
Number of auxiliary contacts as change-over contact -
0
Interlockable -
Type of electrical connection of main circuit -
Other
Version as emergency stop installation -
Type of control element -
Other
Version as main switch -
Version as safety switch -
Version as maintenance-/service switch -
Rated operation power at AC-23, 400 V -
335 Kilowatt
Max. rated operation voltage Ue AC -
690 Volt
Device construction -
Built-in device fixed built-in technique
Rated permanent current at AC-23, 400 V -
630 Ampere

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3KF53630MF11

Please check compatibility before purchasing.
