3LD31300TK11

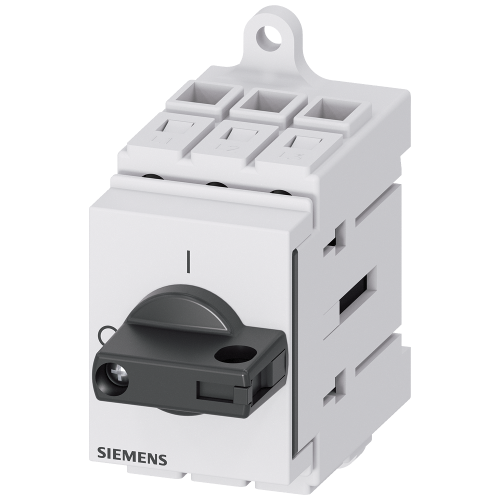

Switch disconnector 3LD3, Iu 25 A main control switch 3-pole

Manufacturer's No: 3LD3130-0TK11     Manufacturer: Siemens
Switch disconnector 3LD3, Iu 25 A main control switch 3-pole

View 3D

Availability Back Order

£17.33
  • Load disconnector 3LD3
  • Main switch 3-pole, Iu 25A
  • Rated operating capacity at AC-23: 9.0 kW
  • Installation in distribution boards
  • Basic switch with black selector knob

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3LD3130-0TK11
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Switching power at 400 V -
- Kilowatt
Suitable for distribution board installation -
Suitable for intermediate mounting -
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Black
Degree of protection (IP), front side -
IP40
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Number of switches -
1
Rated operation power at AC-23, 400 V -
10 Kilowatt
Rated operation power at AC-3, 400 V -
8 Kilowatt
Rated permanent current at AC-21, 400 V -
25 Ampere
Rated permanent current at AC-23, 400 V -
20 Ampere
Rated permanent current Iu -
25 Ampere
Rated short-time withstand current lcw -
0.5 kiloampere
Suitable for floor mounting -
Type of control element -
Toggle
Type of electrical connection of main circuit -
Frame clamp
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
