3RA11304EB340AF0

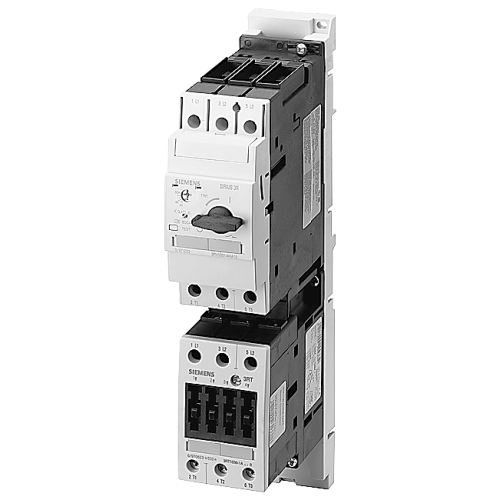

Load feeder fuseless direct-on-line starting, 400 V AC 22...32 A, 110 V AC 50 Hz Size S2 Screw termi

Manufacturer's No: 3RA1130-4EB34-0AF0     Manufacturer: Siemens
Load feeder fuseless direct-on-line starting, 400 V AC 22...32 A, 110 V AC 50 Hz Size S2 Screw termi

Availability On Request

POA
  • Load feeder fuseless direct-on-line starting
  • Voltage: 400 V AC
  • Current: 22-32 A
  • Control voltage: 110 V AC, 50 Hz
  • Size: S2
  • Screw terminal on adapter
  • Screw and snap-on mounting
  • Type of coordination: 2 (also fulfills type of coordination 1)
  • Short-circuit breaking capacity: Iq = 50 kA
  • Phased-out product, successor is SIRIUS 3RA2


Product

Manufacturer Material ID -
3RA1130-4EB34-0AF0
Net Weight -
2.08kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of command positions -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Release class -
UN
Type of electrical connection for auxiliary- and control current circuit -
UN
Voltage type for actuating -
UN
Rated operation power at AC-3, 230 V, 3-phase -
- Kilowatt
Rated power, 460 V, 60 Hz, 3-phase -
- Kilowatt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Ambient temperature, upper operating limit -
- Degrees celsius
Rated conditional short-circuit current, type 2, 400 V -
- Ampere
Rated conditional short-circuit current, type 2, 230 V -
- Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
- Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Degree of protection (NEMA) -
UN
Width -
55 Millimetre
Height -
295 Millimetre
Depth -
173 Millimetre
Rated operation power at AC-3, 400 V -
15 Kilowatt
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated operation current Ie -
29 Ampere
Number of indicator lights -
0
Overload release current setting -
22 Ampere
Degree of protection (IP) -
IP20
With short-circuit release -
Type of electrical connection of main circuit -
Screw connection
Kind of motor starter -
Direct starter
Rated operation current at AC-3, 400 V -
29 Ampere
Coordination class according to IEC 60947-4-3 -
Class 2
