3RA13358XB301AG2

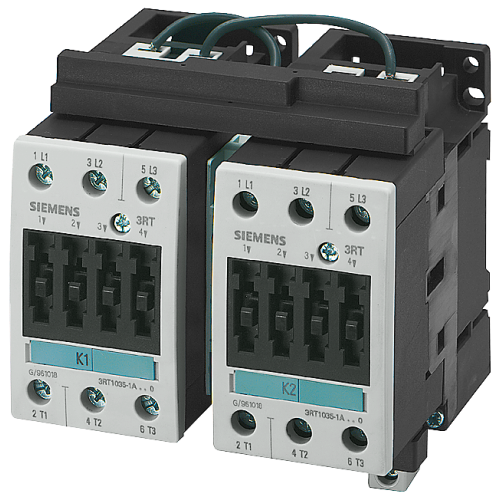

Reversing contactor assembly AC-3, 18.5kW/400 V, 3-pole Size S2, Screw terminal 110 V AC, 50/60 Hz

Manufacturer's No: 3RA1335-8XB30-1AG2     Manufacturer: Siemens
Reversing contactor assembly AC-3, 18.5kW/400 V, 3-pole Size S2, Screw terminal 110 V AC, 50/60 Hz

Availability On Request

POA

This product has been superseded by

3RA23288XB301AG2

Please check compatibility before purchasing.

  • Reversing contactor assembly
  • AC-3, 18.5 kW, 400 V, 3-pole Size S2
  • Screw terminal 110 V AC, 50/60 Hz
  • Electrical and mechanical interlock
  • Phased-out product
  • Successor: SIRIUS 3RA2
  • Preferred successor type: 3RA2335-8XB30-1AG2

Follow-up article



Product

Manufacturer Material ID -
3RA1335-8XB30-1AG2
Net Weight -
2.25kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Degree of protection (NEMA) -
UN
Rated operation power NEMA -
- Kilowatt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Function -
Reversing safety
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
110 Volt
Rated operation current Ie at AC-3, 400 V -
40 Ampere
Rated operation power at AC-3, 400 V -
18.5 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3RA23288XB301AG2

Please check compatibility before purchasing.
