3RA14368XC211AL2

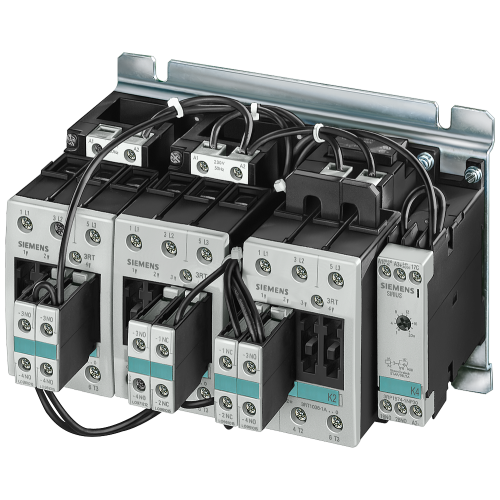

Contactor assembly Star-delta (wye-delta) (pre-assembled) with lateral timing relay AC-3, 45kW/400

Manufacturer's No: 3RA1436-8XC21-1AL2     Manufacturer: Siemens
Contactor assembly Star-delta (wye-delta) (pre-assembled) with lateral timing relay AC-3, 45kW/400

Availability On Request

POA

This product has been superseded by

3RA24368XF321AL2

Please check compatibility before purchasing.

  • Contactor assembly Star-delta (wye-delta) pre-assembled with lateral timing relay
  • AC-3 rated for 45 kW at 400 V
  • 3-pole Size S2
  • Electrically interlocked with screw terminals
  • Operates at 230 V AC, 50/60 Hz
  • Phased-out product, successor is SIRIUS 3RA2
  • Preferred successor type: 3RA2436-8XF32-1AL2

Follow-up article



Product

Manufacturer Material ID -
3RA1436-8XC21-1AL2
Net Weight -
3.69kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Degree of protection (NEMA) -
UN
Rated operation power NEMA -
- Kilowatt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Function -
Star-delta contactor
Number of normally closed contacts as main contact -
0
Rated control supply voltage at AC 50 Hz -
230 Volt
Rated control supply voltage at AC 60 Hz -
230 Volt
Rated operation current Ie at AC-3, 400 V -
86 Ampere
Rated operation power at AC-3, 400 V -
45 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3RA24368XF321AL2

Please check compatibility before purchasing.
