3RA21304KA380AP0

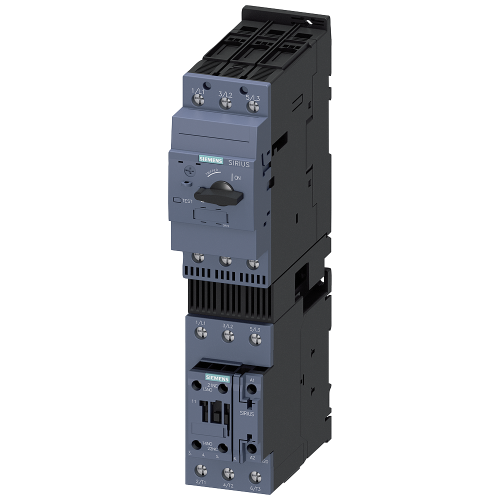

Load feeder, direct starter, S2, 62-65 A, 230 V AC/50 Hz, 100 kA

Manufacturer's No: 3RA2130-4KA38-0AP0     Manufacturer: Siemens
Load feeder, direct starter, S2, 62-65 A, 230 V AC/50 Hz, 100 kA

Availability On Request

£563.38
  • Load feeder fuseless
  • Direct-on-line starting at 400 V AC
  • Size S2 62 ... 65 A at 230 V AC, 50 Hz
  • Screw terminal for installation on standard mounting rail
  • Type of coordination 1 and Type of coordination 2
  • Iq = 100 kA
  • 1 Normally Open + 1 Normally Closed contactor

Component part

Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Product video
Product video
Instructional video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RA2130-4KA38-0AP0
Net Weight -
2.28kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation power at AC-3, 230 V, 3-phase -
- Kilowatt
Rated power, 460 V, 60 Hz, 3-phase -
- Kilowatt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Degree of protection (IP) -
IP20
Kind of motor starter -
Other
Coordination class according to IEC 60947-4-3 -
Class 2
Ambient temperature, upper operating limit -
60 Degrees celsius
Degree of protection (IP rating) -
IP20
Degree of protection (NEMA) -
Other
Depth -
150 Millimetre
Height -
274 Millimetre
Number of command positions -
1
Number of indicator lights -
0
Overload release current setting -
62 Ampere
Rail mounting possible -
Rated conditional short-circuit current, type 1, 480 Y/277 V -
20000 Ampere
Rated conditional short-circuit current, type 2, 230 V -
100000 Ampere
Rated conditional short-circuit current, type 2, 400 V -
100000 Ampere
Rated operation current at AC-3, 400 V -
73 Ampere
Rated operation current Ie -
73 Ampere
Rated operation power at AC-3, 400 V -
37 Kilowatt
Release class -
CLASS 10
Suitable for emergency stop -
Temperature compensated overload protection -
Type of electrical connection for auxiliary- and control current circuit -
Screw connection
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
Width -
55 Millimetre
With short-circuit release -

Availability On Request

£563.38
