3RA24368XH321NB3

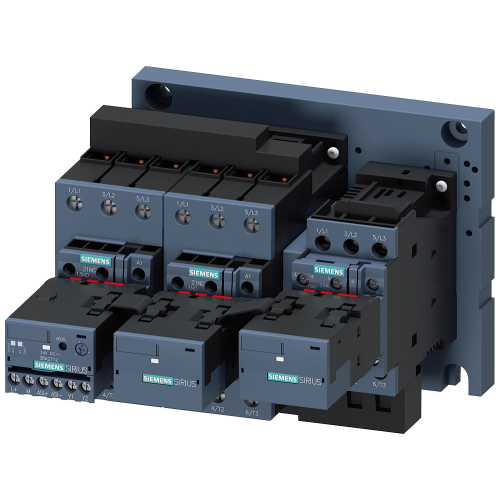

Contactor assembly for star-delta (wye-delta) start with AS-Interface AC 3: 45 kW/400 V 20-33 V AC/DC, 3 NO + 3 NC

Manufacturer's No: 3RA2436-8XH32-1NB3     Manufacturer: Siemens
Contactor assembly for star-delta (wye-delta) start with AS-Interface AC 3: 45 kW/400 V 20-33 V AC/DC, 3 NO + 3 NC

Availability On Request

£1,106.88
  • Contact type: 3-pole
  • Application: Star-delta (wye-delta) start
  • Rated operational power: 45 kW
  • Rated operational voltage: 400 V
  • Control voltage: 20-33 V AC/DC
  • Contact configuration: 3 NO + 3 NC
  • Size: S2
  • Terminal type: Screw terminal
  • Features: Electrical and mechanical interlock
  • Compatibility: AS-i AC-3

Accessories

Component part

Question and Answer (Q&A video)
Presentation video
Presentation video
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RA2436-8XH32-1NB3
Net Weight -
3.74kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
20 Volt
Rated control supply voltage Us at AC 60HZ -
20 Volt
Rated control supply voltage Us at DC -
20 Volt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Degree of protection (NEMA) -
Other
Function -
Star-delta contactor
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at AC 50 Hz -
20 Volt
Rated control supply voltage at AC 60 Hz -
20 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-3, 400 V -
86 Ampere
Rated operation power at AC-3, 400 V -
45 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC

Availability On Request

£1,106.88
Sign in or Register for customer prices.
