553909

PAN-10X1,5-BL Plastic tubing

Manufacturer's No: PAN-10X1,5-BL     Manufacturer: Festo
PAN-10X1,5-BL Plastic tubing

Availability Available to order

£4.57

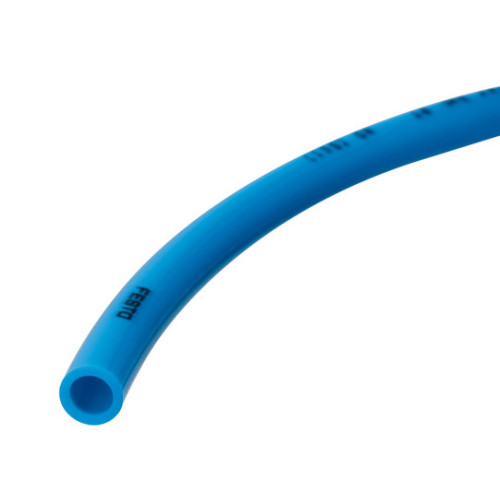

  • Plastic tubing PAN-10X1,5-BL made of Polyamide
  • Tubing O.D.: 10 mm, I.D.: 7 mm
  • Available in blue color, lengths from 1 to 50 meters
  • Suitable for energy chains, with a flow-relevant bending radius of 58 mm
  • Min. bending radius: 27 mm
  • Temperature-dependent operating pressure: -0.095 MPa to 1.7 MPa (-0.95 to 17 bar, -13.775 to 246.5 psi)
  • Approved by German Technical Control Board (TÜV)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature range: -30°C to 80°C
  • Product weight: 0.042 kg/m

Read more

  • Pneumatic connection for push-in connector O.D. 10 mm
  • Shore hardness: D 55 +/-3
  • RoHS-compliant TPE-A material tubing


Product

Manufacturer Material ID -
PAN-10X1,5-BL
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
39173200
Country of Origin -
CZ
Minimum Order Quantity -
1
UNSPSC -
40183002

Technical Specification

Voltage type -
UN
Coating housing -
UN
Type of interface for safety communication -
UN
Type of electric connection -
UN
Type of switching output -
UN
Type of switch function -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Construction type housing -
UN
Mechanical mounting condition for sensor -
UN
Category according to EN 954-1 -
UN
Type of actuation -
UN
Type of interface -
UN
Performance level acc. EN ISO 13849-1 -
UN
Interference resistance to magnetic fields -
UN
Material housing -
Other
Housing material -
Other
Interface type -
None
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
