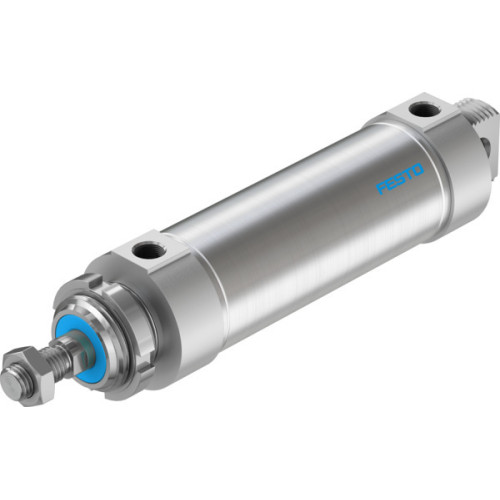

DSNU-63-125-PPS-A Round cylinder

Manufacturer's No: DSNU-63-125-PPS-A     Manufacturer: Festo
DSNU-63-125-PPS-A Round cylinder

Availability Available to order

£139.31
  • Type: Round cylinder DSNU-63-125-PPS-A with self-adjusting pneumatic end position cushioning
  • Stroke: 125 mm
  • Piston diameter: 63 mm
  • Piston rod thread: M16x1.5
  • Cushioning: Self-adjusting pneumatic end-position cushioning
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L

Read more

  • Ambient temperature: -20°C to 80°C
  • Cushioning length: 21 mm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 1681.9 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 1870.3 N
  • Moving mass: 772 g
  • Product weight: 1995 g
  • Pneumatic connection: G3/8
  • Material cover: Wrought aluminium alloy
  • Material seals: NBR, TPE-U(PU)
  • Material piston rod: High-alloy steel
  • Material cylinder barrel: High-alloy stainless steel


Product

Manufacturer Material ID -
DSNU-63-125-PPS-A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Voltage type -
UN
Material housing -
UN
Type of analogy output -
UN
Type of electric connection -
UN
Type of switching output -
UN
Type of switch function -
UN
Setting procedure -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Construction type housing -
UN
Standard for interfaces -
UN
Material active area of sensor -
UN
Material of cable sheath -
UN
