3RH19211FA22

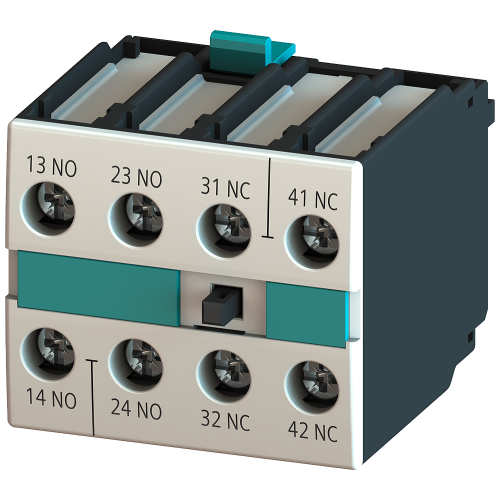

Front Mounting Auxiliary Switch Block, 2NO+2NC, S6 to S12

Manufacturer's No: 3RH1921-1FA22     Manufacturer: Siemens
Front Mounting Auxiliary Switch Block, 2NO+2NC, S6 to S12

Availability On Request

POA
  • Front mounting auxiliary switch block
  • 4-pole with 2 normally open (NO) and 2 normally closed (NC) contacts
  • Suitable for S6 to S12
  • Attachable block
  • Compliant with EN 50005
  • Phased-out product, successor is SIRIUS 3RH2


Product

Manufacturer Material ID -
3RH1921-1FA22
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens
Lamp holder -
UN
Number of fault-signal switches -
-
Mounting method -
Other
Model -
Top mounting
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Type of electric connection -
Screw connection
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
2
Number of contacts as change-over contact -
0
