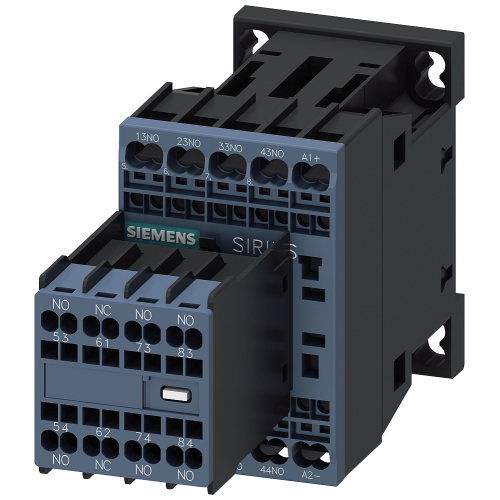

3RH23712FB40

Contactor relay, 7 NO + 1 NC, 24 V DC, with integrated diode Size. S00, spring-type terminal, Removable auxiliary switch

Manufacturer's No: 3RH2371-2FB40     Manufacturer: Siemens
Contactor relay, 7 NO + 1 NC, 24 V DC, with integrated diode Size. S00, spring-type terminal, Removable auxiliary switch

View 3D

Availability Back Order

£59.60
  • Contact configuration: 7 Normally Open (NO) + 1 Normally Closed (NC)
  • Coil voltage: 24 V DC
  • Integrated diode for back EMF protection
  • Size: S00
  • Spring-type terminals for easy wiring
  • Removable auxiliary switch for added flexibility
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Product video
Instructional video


Product

Manufacturer Material ID -
3RH2371-2FB40
Net Weight -
0.37kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Mounting method -
UN
Number of auxiliary contacts as change-over contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Number of auxiliary contacts as normally closed contact, delayed switching -
-
Number of auxiliary contacts as normally open contact, leading -
-
Rated control supply voltage Us at DC -
24 Volt
Connection type auxiliary circuit -
Spring clamp connection
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
7
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie, 400 V -
3 Ampere
Voltage type for actuating -
DC

Availability Back Order

£59.60
