3RH29111YA210MA0

Auxiliary switch on the front, 2 NO + 1 NC Current path 1 NC, 1 NO, 1 NO for 3RH and 3RT screw terminal 31/32, 43/44, 53/54 Specia

Manufacturer's No: 3RH2911-1YA21-0MA0     Manufacturer: Siemens
Auxiliary switch on the front, 2 NO + 1 NC Current path 1 NC, 1 NO, 1 NO for 3RH and 3RT screw terminal 31/32, 43/44, 53/54 Special inscription

View 3D

Availability Back Order

£10.38
  • Auxiliary switch located on the front
  • Configuration: 2 Normally Open (NO) + 1 Normally Closed (NC)
  • Compatible with contactors 3RT2 and contactor relays 3RH2

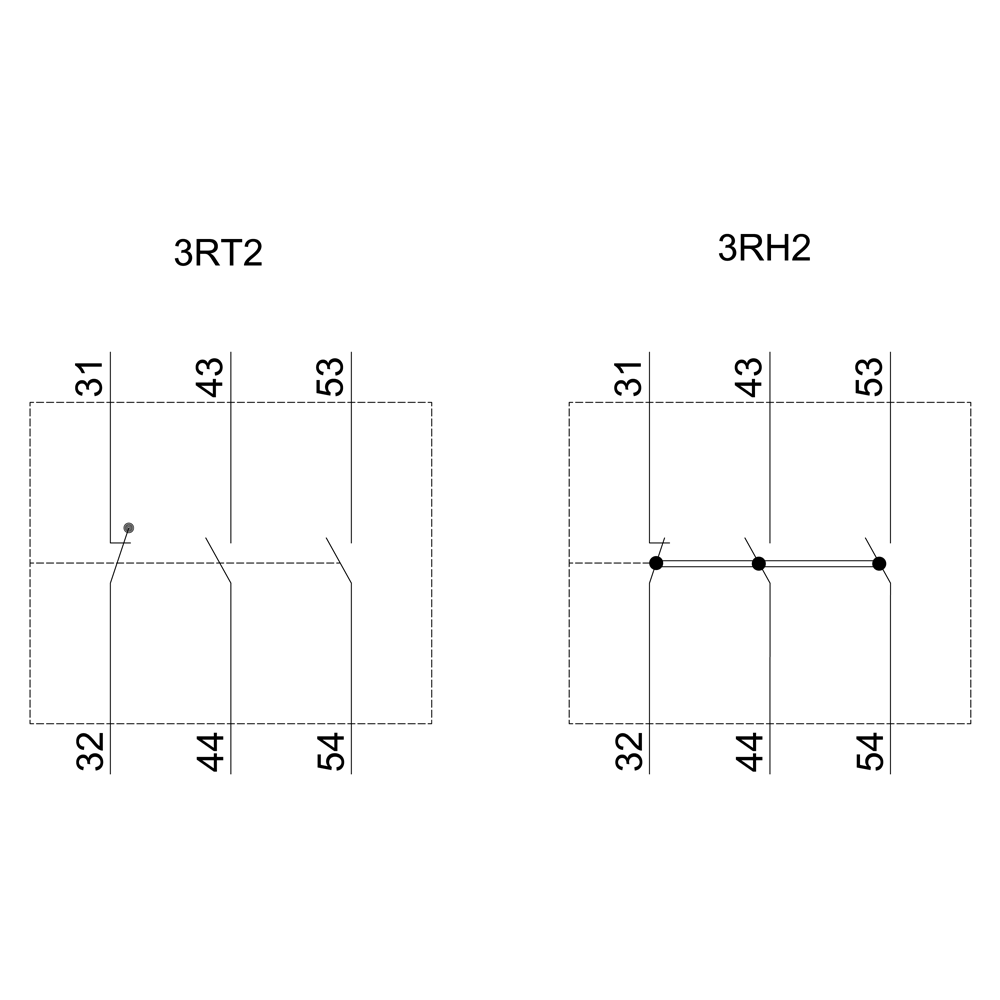

  • Current path: 1 NC, 1 NO, 1 NO
  • Screw terminal connection
  • Suitable for 31/32, 43/44, 53/54 configurations
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Product video
Instructional video


Product

Manufacturer Material ID -
3RH2911-1YA21-0MA0
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Lamp holder -
None
Model -
Clip-on
Lamp cap/base -
None
Mounting method -
Other
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
2
Number of fault-signal switches -
0
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Type of electric connection -
Screw connection
