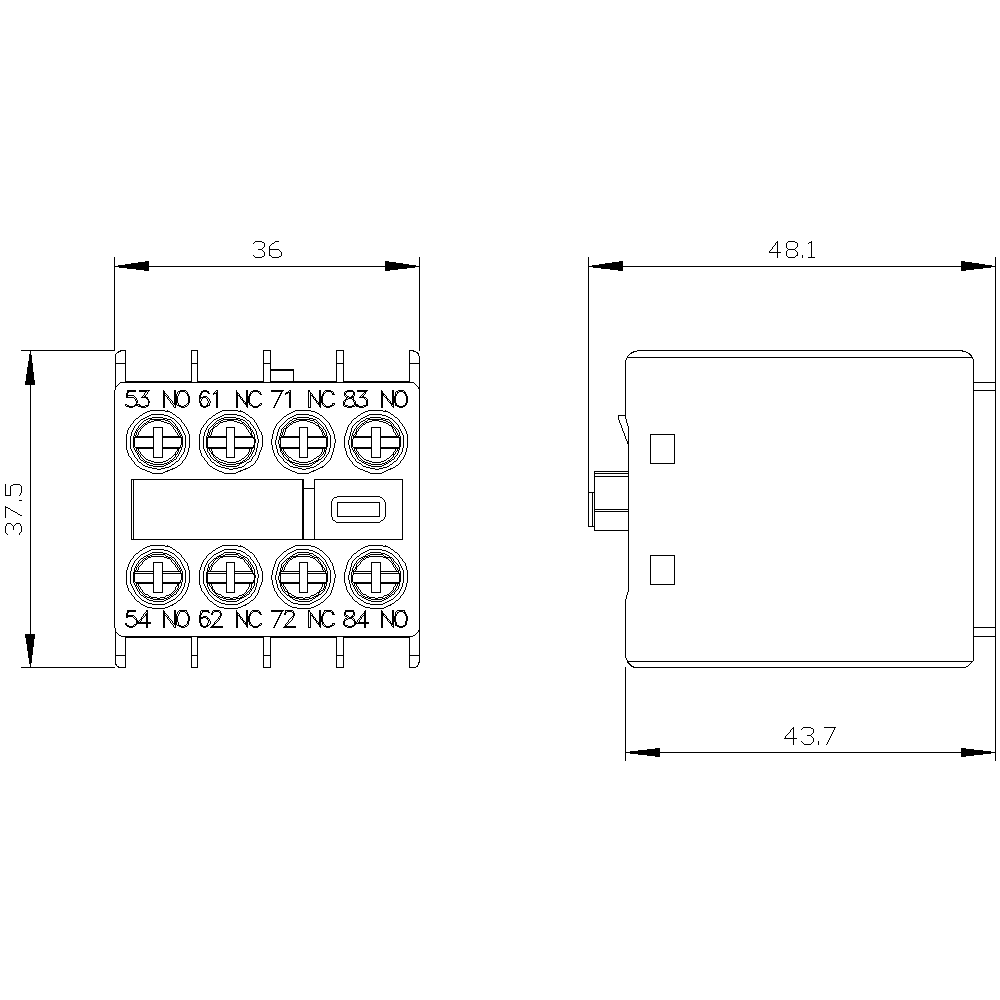

Auxiliary switch on the front, 2 NO + 2 NC Current path 1 NO, 1 NC, 1 NC, 1 NO for 3RH and 3RT screw terminal 53/54, 61/62, 71/72, 83/84

3RH29161XA220MA0

Auxiliary switch on the front, 2 NO + 2 NC Current path 1 NO, 1 NC, 1 NC, 1 NO for 3RH and 3RT screw terminal 53/54, 61/62, 71/72, 83/84

Produced by Siemens

Availability Back Order

Price - £13.45
Auxiliary switch on the front, 2 NO + 2 NC Current path 1 NO, 1 NC, 1 NC, 1 NO for 3RH and 3RT screw terminal 53/54, 61/62, 71/72, 83/84
No alternatives available for this product.
Product
Manufacturer Material ID -
3RH2916-1XA22-0MA0
Net Weight -
0.05kg
Additional Product Information
Commodity Code -
85365080
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121522
Technical Specification
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
2
