3RK11070BG002AA2

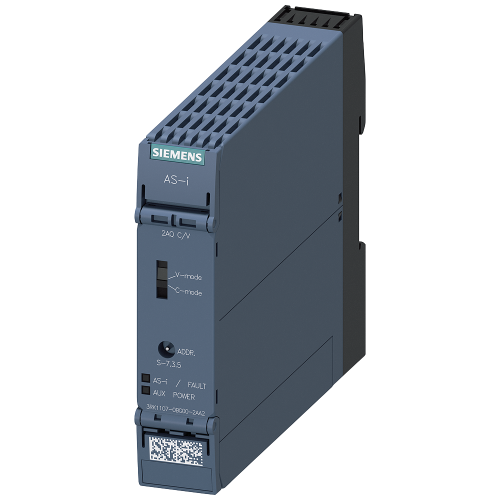

AS-i SlimLine Compact module SC22.5, IP20, 2 AQ-C/V spring-type, 4 x analog output

Manufacturer's No: 3RK1107-0BG00-2AA2     Manufacturer: Siemens
AS-i SlimLine Compact module SC22.5, IP20, 2 AQ-C/V spring-type, 4 x analog output

Availability On Request

£239.46
  • AS-i SlimLine Compact module SC22.5
  • IP20 protection rating
  • Analog 2AQ-C/V with spring-loaded terminals
  • 2 analog output outputs switchable between current and voltage
  • Overall width of 22.5 mm

Accessories

Removable terminals 2-POLE

Product Code - 3ZY11211BA00
Price £3.45
On Request

Removable terminals 4-POLE

Product Code - 3ZY11411BA00
Price £5.54
On Request

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request

Component part



Product

Manufacturer Material ID -
3RK1107-0BG00-2AA2
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

Voltage type of supply voltage -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Degree of protection (NEMA) -
UN
Number of analogue inputs -
0
Number of analogue outputs -
2
Resolution of the analogue inputs -
12 Bit
Resolution of the analogue outputs -
12 Bit
Type of electric connection -
Other
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
SIL according to IEC 61508 -
None
Degree of protection (IP rating) -
IP20
Depth -
120 Millimetre
Height -
100 Millimetre
Number of digital inputs -
0
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Supporting protocol for ASI -
System accessory -
Width -
22.5 Millimetre

Availability On Request

£239.46
