3RK13956LS412AD0

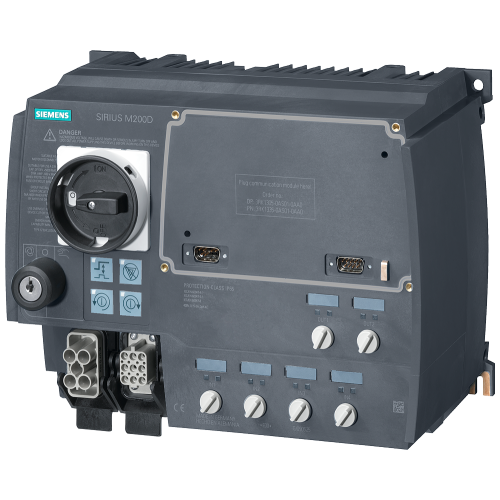

SIRIUS motor starter M200D Technology module DOL starter Mechanical switching AC-3, 5.5kW / 400 V 1

Manufacturer's No: 3RK1395-6LS41-2AD0     Manufacturer: Siemens

Availability Back Order

£572.98
  • Motor starter model: SIRIUS M200D
  • Technology module: DOL starter
  • Mechanical switching for AC-3
  • Power rating: 5.5 kW / 400 V
  • Current range: 1.5 A to 12.00 A
  • Electronic overload protection with Thermistor THERMOCLICK/PTC
  • Configuration: 4 digital inputs / 2 digital outputs
  • Control options: Manual on-site operation and key-operated switch
  • Communication module compatibility: 3RK1305*
  • Communication protocols: PROFIBUS or PROFINET


Product

Manufacturer Material ID -
3RK1395-6LS41-2AD0
Net Weight -
3.72kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Rated control supply voltage Us at DC -
20.4 Volt
Degree of protection (IP) -
IP65
Type of electrical connection for auxiliary- and control current circuit -
Other
Coordination class according to IEC 60947-4-3 -
Class 1
Ambient temperature, upper operating limit -
40 Degrees celsius
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
12
Depth -
148 Millimetre
External reset possible -
Height -
215 Millimetre
Kind of motor starter -
Direct starter
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of command positions -
4
Number of indicator lights -
12
Overload release current setting -
1.5 Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
50000 Ampere
Rated conditional short-circuit current, type 2, 230 V -
50000 Ampere
Rated conditional short-circuit current, type 2, 400 V -
50000 Ampere
Rated control supply voltage at DC -
20.4 Volt
Rated operation current at AC-3, 400 V -
12 Ampere
Rated operation current Ie -
12 Ampere
Rated operation power at AC-3, 230 V, 3-phase -
3 Kilowatt
Rated operation power at AC-3, 400 V -
5.5 Kilowatt
Rated power, 460 V, 60 Hz, 3-phase -
5.5 Kilowatt
Release class -
Other
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Temperature compensated overload protection -
Type of electrical connection of main circuit -
Other
Voltage type for actuating -
DC
Width -
294 Millimetre
With short-circuit release -
