3RK14001MQ010AA4

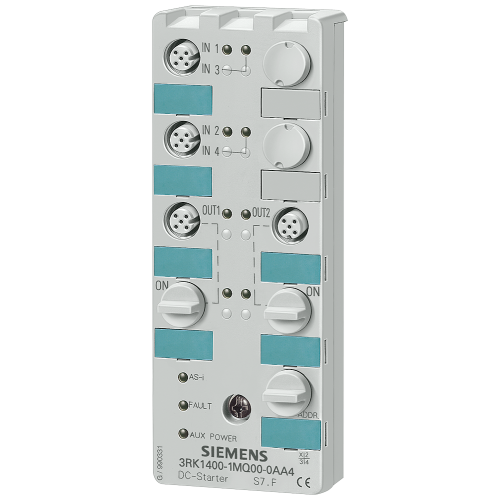

AS-i 24 V DC starter IP67, digital, 4I/2Q, double starter in K60 design

Manufacturer's No: 3RK1400-1MQ01-0AA4     Manufacturer: Siemens
AS-i 24 V DC starter IP67, digital, 4I/2Q, double starter in K60 design

Availability On Request

POA
  • AS-i 24 V DC starter IP67
  • Digital, 4 inputs / 2 outputs
  • Double starter in K60 design
  • AS-Interface 24 V DC starter
  • 4 digital inputs / 2 digital outputs
  • IP67 rated
  • 2 x 2 inputs, 200 mA Y assignment
  • 2 outputs, 2 A for connection of 2 x 24 V DC motor
  • Mounting plate 3RK1901-0CA00 to be ordered separately


Product

Manufacturer Material ID -
3RK1400-1MQ01-0AA4
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Time delay at signal exchange -
- Millisecond
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP) -
IP67
Number of interfaces PROFINET -
0
Degree of protection (IP rating) -
IP67
Depth -
29 Millimetre
Height -
152 Millimetre
Input current at signal 1 -
6 Milliampere
Number of digital inputs -
4
Number of digital outputs -
2
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
3 Ampere
Short-circuit protection, outputs available -
Supporting protocol for ASI -
System accessory -
Type of digital output -
Other
Type of electric connection -
Screw connection
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
60 Millimetre

Availability On Request

POA
