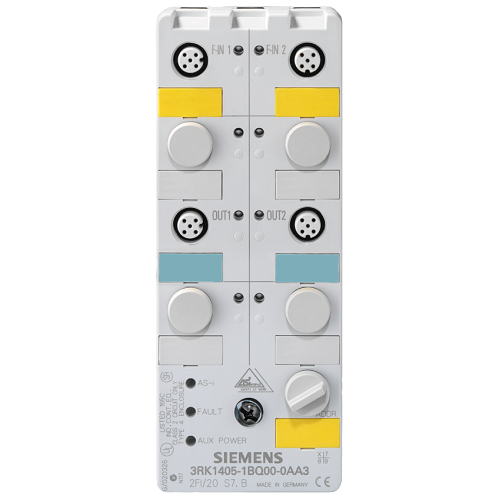

3RK14051BQ000AA3

ASIsafe compact module K60F digital safety, 2 F-DI/2 DQ, IP67 2 x input for mechanical sensors 2 x s

Manufacturer's No: 3RK1405-1BQ00-0AA3     Manufacturer: Siemens
ASIsafe compact module K60F digital safety, 2 F-DI/2 DQ, IP67 2 x input for mechanical sensors 2 x s

Availability On Request

£182.16
  • ASIsafe compact module K60F digital safety
  • 2 F-DI/2 DQ
  • IP67 rated
  • 2 x input for mechanical sensors
  • 2 x standard output at 24 V DC
  • Output supply from 24 V DC
  • 4 x M12 socket
  • Mounting plate 3RK1901-0CA00 to be ordered separately


Product

Manufacturer Material ID -
3RK1405-1BQ00-0AA3
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Number of digital inputs -
-
Time delay at signal exchange -
- Millisecond
Explosion safety category for dust -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
Degree of protection (IP) -
IP67
Category according to EN 954-1 -
4
Number of interfaces PROFINET -
0
Performance level acc. EN ISO 13849-1 -
Level e
Type of digital output -
Other
Type of electric connection -
Screw connection
Performance level acc. to EN ISO 13849-1 -
Level e
Degree of protection (IP rating) -
IP67
Depth -
29 Millimetre
Explosion safety category for gas -
None
Height -
152 Millimetre
Input current at signal 1 -
5 Milliampere
Number of digital outputs -
2
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
2 Ampere
Short-circuit protection, outputs available -
SIL according to IEC 61508 -
3
Supporting protocol for ASI -
Supporting protocol for AS-Interface Safety at Work -
System accessory -
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
60 Millimetre

Availability On Request

£182.16
