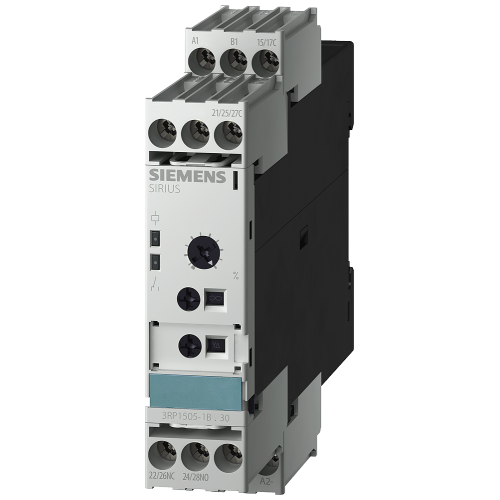

3RP15051BT20

Timing relay, Multifunction Phased-out product !!! For further information, please contact our sales

Manufacturer's No: 3RP1505-1BT20     Manufacturer: Siemens
Timing relay, Multifunction Phased-out product !!! For further information, please contact our sales

Availability On Request

POA

This product has been superseded by

3RP25051BT20

Please check compatibility before purchasing.

  • Timing relay
  • Phased-out product
  • Discontinued since: 29/07/21
  • Successor: 3RP2505-1BT20

Follow-up article

Product video
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RP1505-1BT20
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Nominal current -
- Ampere
Rated control supply voltage Us at DC -
- Volt
With plug-in socket -
Rated control supply voltage Us at AC 50HZ -
400 Volt
Rated control supply voltage Us at AC 60HZ -
400 Volt
Depth -
91 Millimetre
Function delay-on energization -
Function flashing, starting with pause, fixed time -
Function floating contact on de-energization -
Function floating contact on energization -
Function pulse shaping -
Function star-delta -
Height -
102 Millimetre
Number of outputs, delayed, change-over contact -
2
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Rated control supply voltage at AC 50 Hz -
400 Volt
Rated control supply voltage at AC 60 Hz -
400 Volt
Time range -
0.05 Second
Type of electric connection -
Screw connection
Voltage type for actuating -
AC
Width -
22.5 Millimetre

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3RP25051BT20

Please check compatibility before purchasing.
