3RP15602SP30

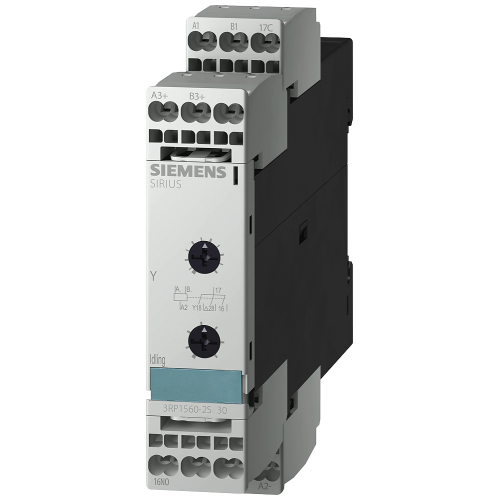

Timing relay, electron., 1-20s, follow-on time 30-600s, 0.85 -1.1 US

Manufacturer's No: 3RP1560-2SP30     Manufacturer: Siemens
Timing relay, electron., 1-20s, follow-on time 30-600s, 0.85 -1.1 US

Availability On Request

POA

This product has been superseded by

3RP25602SW30

Please check compatibility before purchasing.

  • Timing relay with adjustable timing range: 1-20 seconds
  • Follow-on time range: 30-600 seconds
  • Supply voltage: 0.85-1.1 VDC
  • Discontinued since: 01/10/21
  • Successor model: 3RP2560-2SW30

Follow-up article

Product video


Product

Manufacturer Material ID -
3RP1560-2SP30
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122329

Technical Specification

Nominal current -
- Ampere
With plug-in socket -
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
200 Volt
Rated control supply voltage Us at DC -
24 Volt
Depth -
91 Millimetre
Height -
103 Millimetre
Number of outputs, delayed, change-over contact -
0
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
3
Rated control supply voltage at AC 50 Hz -
200 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Time range -
1 Second
Type of electric connection -
Spring clamp connection
Voltage type for actuating -
AC/DC
Width -
22.5 Millimetre

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3RP25602SW30

Please check compatibility before purchasing.
