3RP20052BW30

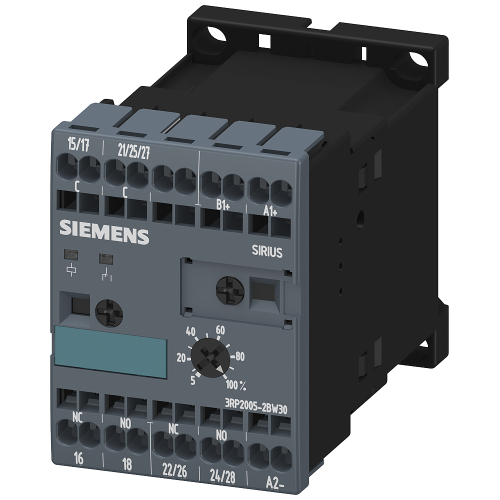

Timing relay, electronic, multi-function, 16 functions 2 CO, 24 to 240 V AC/DC

Manufacturer's No: 3RP2005-2BW30     Manufacturer: Siemens
Timing relay, electronic, multi-function, 16 functions 2 CO, 24 to 240 V AC/DC

Availability On Request

£144.49
  • Timing relay with electronic Multifunction
  • 16 functions with 2 change-over contacts
  • Operating voltage: 24 to 240 V AC/DC at 50/60 Hz
  • Timing range: 0.05 seconds to 100 hours
  • Overall width: 45 mm
  • Equipped with spring-type terminals

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RP2005-2BW30
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Nominal current -
- Ampere
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Depth -
73 Millimetre
Function delay-on energization -
Function flashing, starting with pause, fixed time -
Function floating contact on de-energization -
Function floating contact on energization -
Function pulse shaping -
Function star-delta -
Height -
57 Millimetre
Number of outputs, delayed, change-over contact -
2
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Time range -
0.05 Second
Type of electric connection -
Spring clamp connection
Voltage type for actuating -
AC/DC
Width -
45 Millimetre

Availability On Request

£144.49
