3RP25052BT20

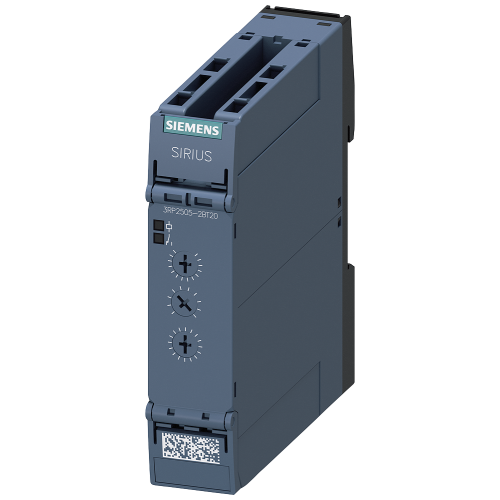

Timing relay, 2 CO, 27 functions, 7 time ranges (0.05s-100h)

Manufacturer's No: 3RP2505-2BT20     Manufacturer: Siemens
Timing relay, 2 CO, 27 functions, 7 time ranges (0.05s-100h)

Availability On Request

£127.26
  • Timing relay with multifunctionality
  • 2 change-over contacts
  • 27 functions available
  • 7 time ranges from 0.05 seconds to 100 hours
  • Operating voltage: 400-440 V AC at 50/60 Hz
  • Equipped with LED indicator
  • Features spring-type terminals for easy installation

Accessories

Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RP2505-2BT20
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Nominal current -
- Ampere
Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
400 Volt
Rated control supply voltage Us at AC 60HZ -
400 Volt
With plug-in socket -
Type of electric connection -
Spring clamp connection
Depth -
90 Millimetre
Function delay-on energization -
Function flashing, starting with pause, fixed time -
Function flashing, starting with pulse, fixed time -
Function floating contact on de-energization -
Function floating contact on energization -
Function pulse shaping -
Function star-delta -
Height -
100 Millimetre
Number of outputs, delayed, change-over contact -
2
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Outputs, reversible delayed/undelayed -
Rated control supply voltage at AC 50 Hz -
400 Volt
Rated control supply voltage at AC 60 Hz -
400 Volt
Time range -
0.05 Second
Voltage type for actuating -
AC
Width -
22.5 Millimetre

Availability On Request

£127.26
