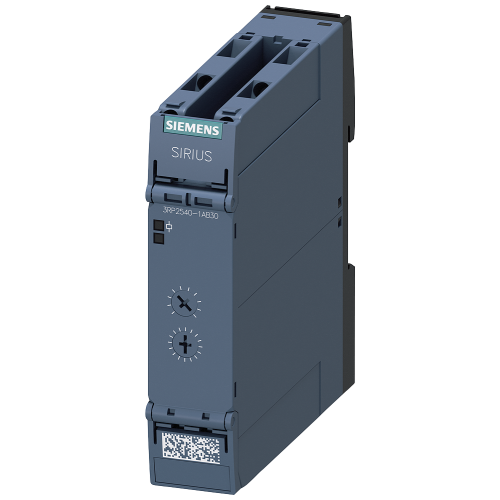

3RP25401AB30

Timing relay, electronic OFF delay without control signal or smooth passing make contact non-volatil

Manufacturer's No: 3RP2540-1AB30     Manufacturer: Siemens
Timing relay, electronic OFF delay without control signal or smooth passing make contact non-volatil

View 3D

Availability Back Order

£115.33
  • Timing relay for electronic OFF delay
  • Non-volatile memory
  • Input: 24 V AC/DC
  • Contact: 1 change-over contact
  • 7 time ranges: 0.05 to 600 seconds
  • LED indicator
  • Screw terminal connection

Accessories

Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RP2540-1AB30
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Nominal current -
- Ampere
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
With plug-in socket -
Rated control supply voltage at AC 50 Hz -
24 Volt
Depth -
90 Millimetre
Function delay on de-energization -
Function floating contact on energization -
Height -
100 Millimetre
Number of outputs, delayed, change-over contact -
1
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Time range -
0.05 Second
Type of electric connection -
Screw connection
Voltage type for actuating -
AC/DC
Width -
22.5 Millimetre

Availability Back Order

£115.33
