3RS10201DW10

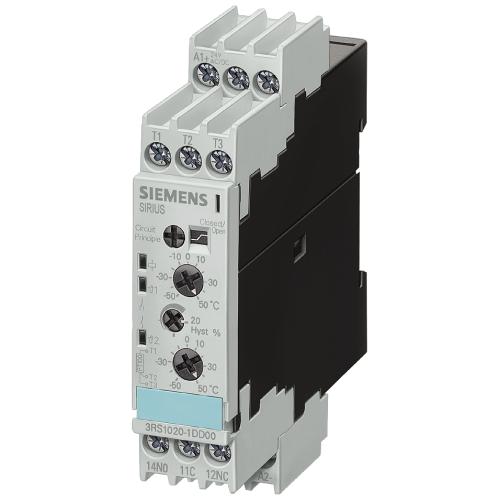

Temperature monitoring relay PT100, Overshoot 2 threshold values, Width 22.5 mm 0 °C to 100 °C 24

Manufacturer's No: 3RS1020-1DW10     Manufacturer: Siemens
Temperature monitoring relay PT100, Overshoot 2 threshold values, Width 22.5 mm 0 °C to 100 °C 24

Availability On Request

POA
  • Temperature monitoring relay PT100
  • Overshoot with 2 threshold values
  • Width: 22.5 mm
  • Temperature range: 0°C to 100°C
  • Voltage: 24-240 V AC/DC
  • Contact configuration: 1 NO + 1 CO
  • Load and quiescent current screw terminal

Follow-up article



Product

Manufacturer Material ID -
3RS1020-1DW10
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Temperature measuring range -
- Degrees celsius
Resistance measuring range -
- Ohm
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
AC/DC
Depth -
91 Millimetre
Height -
102 Millimetre
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
1
Number of measuring circuits -
1
Type of electric connection -
Screw connection
Width -
22.5 Millimetre
With detachable clamps -
-
- Temperature monitoring relay PT100 - Overshoot with 2 threshold values - Width: 22.5 mm - Temperature range: 0°C to 100°C - Voltage: 24-240 V AC/DC - Contact configuration: 1 NO + 1 CO - Load and quiescent current screw terminal
