3RS11011CD20

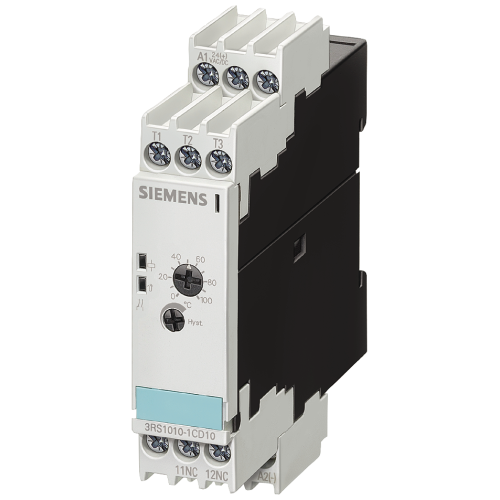

Temperature monitoring relay thermocouple type K, W=22.5 mm 0 - 200 °C

Manufacturer's No: 3RS1101-1CD20     Manufacturer: Siemens
Temperature monitoring relay thermocouple type K, W=22.5 mm 0 - 200 °C

View 3D

Availability Back Order

POA
  • Temperature monitoring relay for thermocouple type K
  • Operating temperature range: 0 to 200°C
  • Width: 22.5 mm
  • Overshoot threshold value: 1
  • Input voltage: 24 V AC/DC
  • Contact configuration: 1 NO + 1 NC
  • Quiescent current principle
  • Screw terminal connection

Follow-up article



Product

Manufacturer Material ID -
3RS1101-1CD20
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Temperature measuring range -
- Degrees celsius
Resistance measuring range -
- Ohm
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
AC/DC
Depth -
91 Millimetre
Height -
102 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of measuring circuits -
1
Type of electric connection -
Screw connection
Width -
22.5 Millimetre
With detachable clamps -

Availability Back Order

POA
