3RS11421GD80

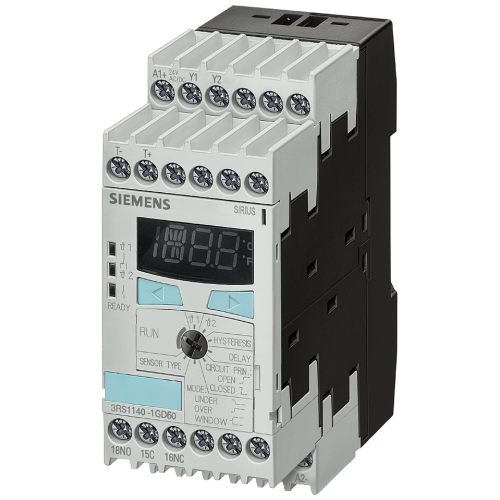

Temperature monitoring relay thermocouple J, K, T, E, N, S, R, B

Manufacturer's No: 3RS1142-1GD80     Manufacturer: Siemens
Temperature monitoring relay thermocouple J, K, T, E, N, S, R, B

Availability On Request

POA
  • Temperature monitoring relay for thermocouples J, K, T, E, N, S, R, B
  • Two threshold values digitally adjustable from -99°C to 1800°C (sensor-dependent)
  • Input voltage: 24V AC/DC
  • Configuration: 2 x 1 CO + 1 NO
  • Width: 45mm
  • Screw terminal connection

Follow-up article



Product

Manufacturer Material ID -
3RS1142-1GD80
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Temperature measuring range -
- Degrees celsius
Resistance measuring range -
- Ohm
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
AC/DC
Depth -
91 Millimetre
Error registration possible -
External reset possible -
Height -
106 Millimetre
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
1
Number of measuring circuits -
1
Type of electric connection -
Screw connection
Width -
45 Millimetre
With detachable clamps -
