3RS14401HB50

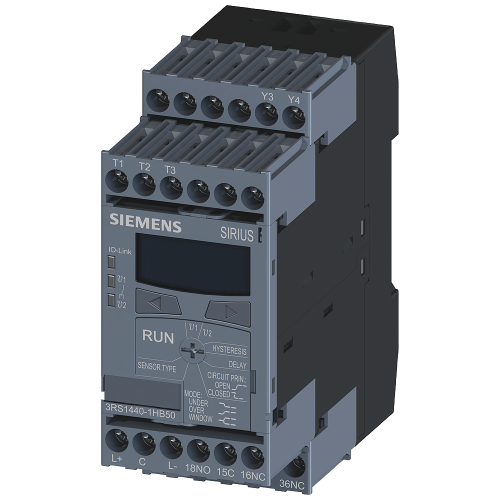

Temperature monitoring relay for IO-Link PT100/1000, KTY83/84, NTC 2 limit values -50 °C to 750 °C

Manufacturer's No: 3RS1440-1HB50     Manufacturer: Siemens
Temperature monitoring relay for IO-Link PT100/1000, KTY83/84, NTC 2 limit values -50 °C to 750 °C

Availability On Request

POA
  • Temperature monitoring relay for IO-Link PT100/1000, KTY83/84, NTC
  • Monitors temperature range: -50°C to 750°C
  • 3 x 1 CO
  • Width: 45 mm
  • Screw terminal

Follow-up article



Product

Manufacturer Material ID -
3RS1440-1HB50
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Temperature measuring range -
- Degrees celsius
Resistance measuring range -
- Ohm
Rated control supply voltage Us at DC -
18 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
DC

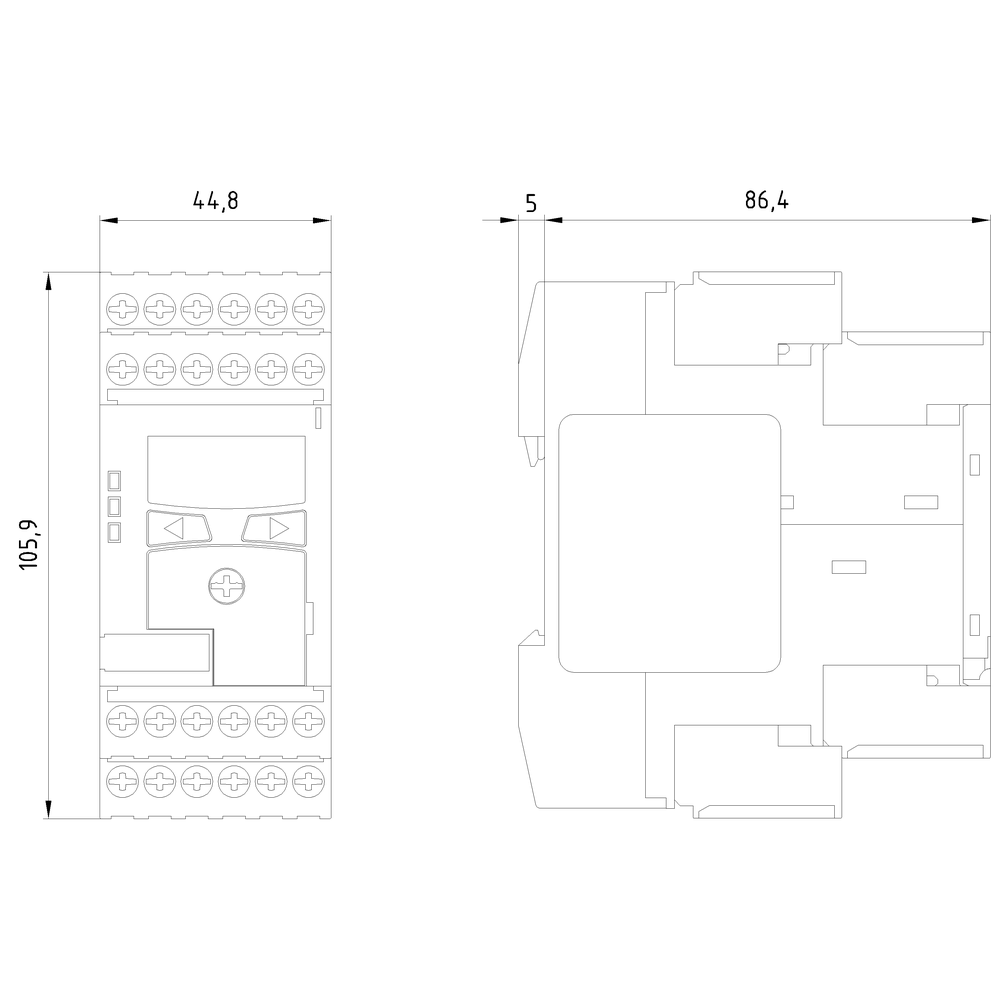

Depth -
91 Millimetre
Error registration possible -
External reset possible -
Height -
106 Millimetre
Number of contacts as change-over contact -
3
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of measuring circuits -
1
Type of electric connection -
Screw connection
Width -
45 Millimetre
-
- Temperature monitoring relay for IO-Link PT100/1000, KTY83/84, NTC - Monitors temperature range: -50°C to 750°C - 3 x 1 CO - Width: 45 mm - Screw terminal Millimetre
