3RS14411HB50

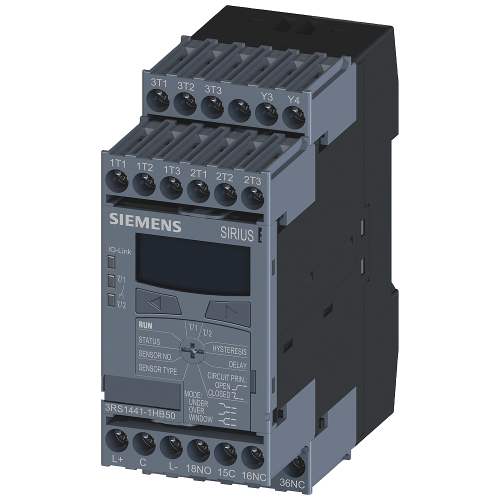

Temperature monitoring relay for IO -Link Pt100/1000, KTY83/84, NTC 1 up to 3 sensors

Manufacturer's No: 3RS1441-1HB50     Manufacturer: Siemens
Temperature monitoring relay for IO -Link Pt100/1000, KTY83/84, NTC 1 up to 3 sensors

Availability On Request

POA
  • Temperature monitoring relay for IO-Link compatible with Pt100/1000, KTY83/84, NTC sensors
  • Supports 1 to 3 sensors
  • 2 limit values ranging from -50°C to 750°C
  • Equipped with 3 x 1 CO relay outputs
  • Compact design with a width of 45 mm
  • Features screw terminals for easy installation

Follow-up article



Product

Manufacturer Material ID -
3RS1441-1HB50
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Temperature measuring range -
- Degrees celsius
Resistance measuring range -
- Ohm
Rated control supply voltage Us at DC -
18 Volt
Rated control supply voltage at DC -
18 Volt
Voltage type for actuating -
DC

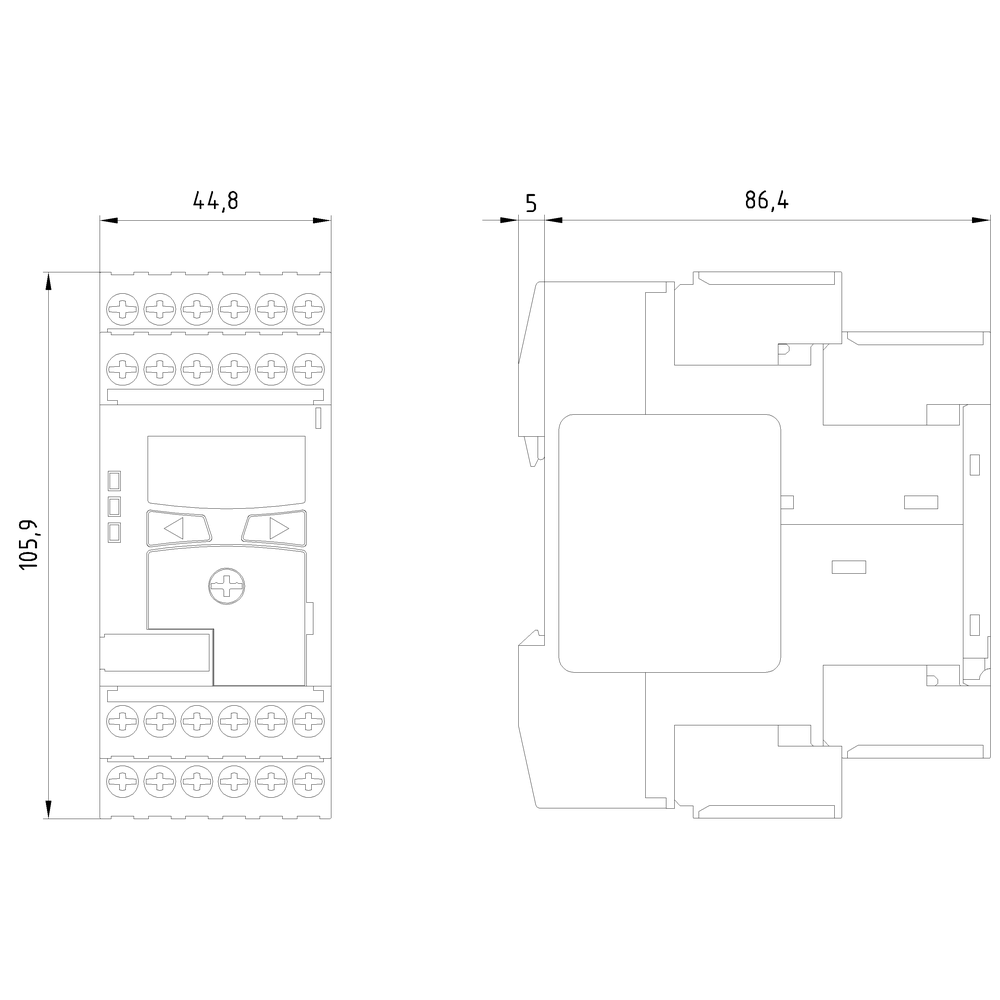

Depth -
91 Millimetre
Error registration possible -
External reset possible -
Height -
106 Millimetre
Number of contacts as change-over contact -
3
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of measuring circuits -
3
Type of electric connection -
Screw connection
Width -
45 Millimetre
