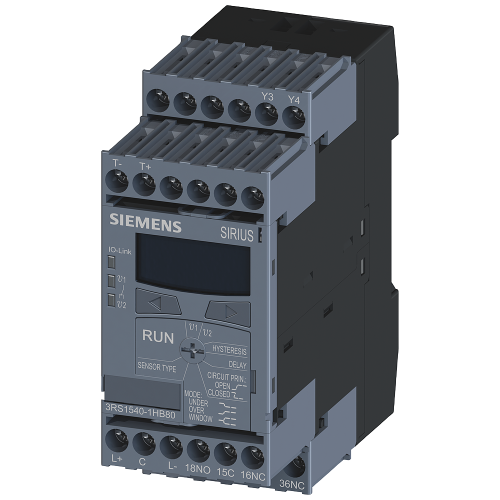

3RS15401HB80

Temperature monitoring relay for IO-Link Thermocouple J,K, T,E, N,R, S,B 2 limit values -99 °C to 1

Manufacturer's No: 3RS1540-1HB80     Manufacturer: Siemens
Temperature monitoring relay for IO-Link Thermocouple J,K, T,E, N,R, S,B 2 limit values -99 °C to 1

Availability On Request

POA
  • Temperature monitoring relay for IO-Link
  • Compatible with Thermocouples: J, K, T, E, N, R, S, B
  • Temperature range: -99°C to 1800°C
  • 2 limit values
  • 3 x 1 CO configuration
  • Width: 45 mm
  • Screw terminal for easy installation

Follow-up article



Product

Manufacturer Material ID -
3RS1540-1HB80
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Temperature measuring range -
- Degrees celsius
Resistance measuring range -
- Ohm
Rated control supply voltage Us at DC -
18 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
DC

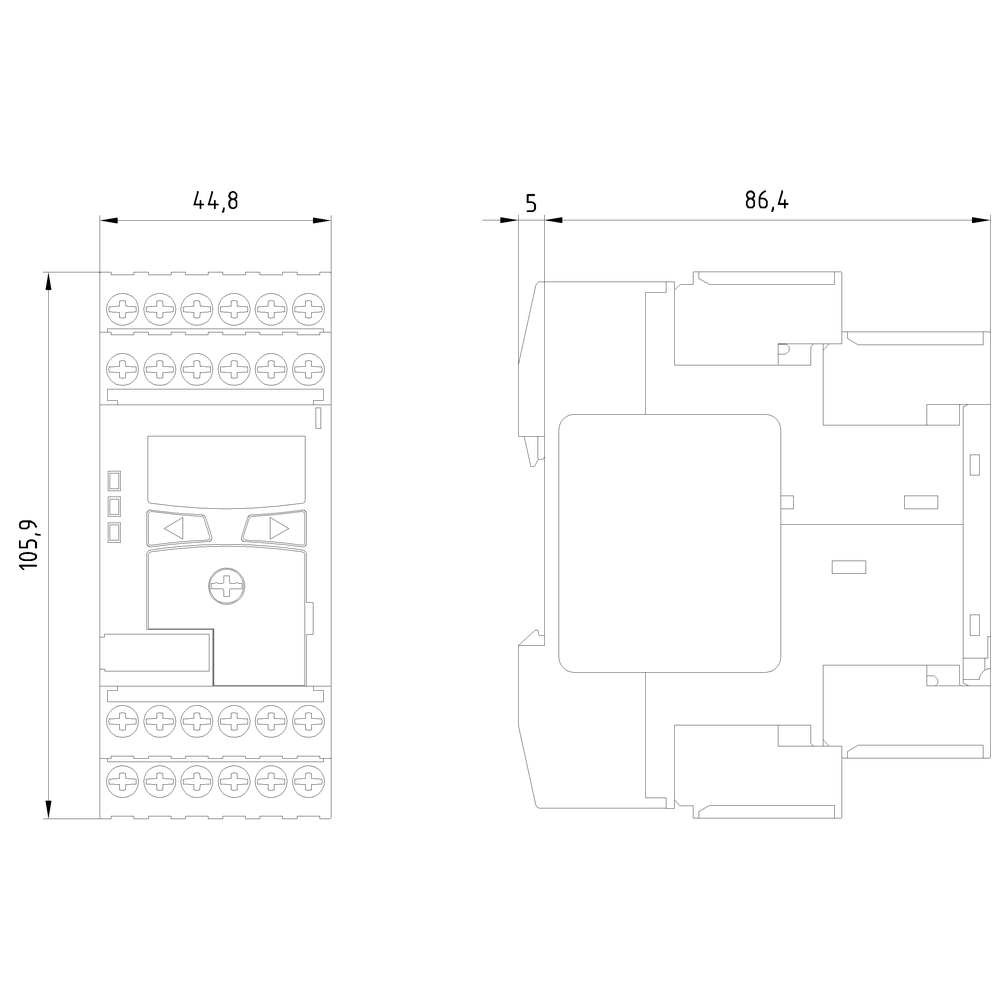

Depth -
91 Millimetre
Error registration possible -
External reset possible -
Height -
106 Millimetre
Number of contacts as change-over contact -
3
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of measuring circuits -
1
Type of electric connection -
Screw connection
Width -
45 Millimetre
With detachable clamps -
-
- Temperature monitoring relay for IO-Link - Compatible with Thermocouples: J, K, T, E, N, R, S, B - Temperature range: -99°C to 1800°C - 2 limit values - 3 x 1 CO configuration - Width: 45 mm - Screw terminal for easy installation
