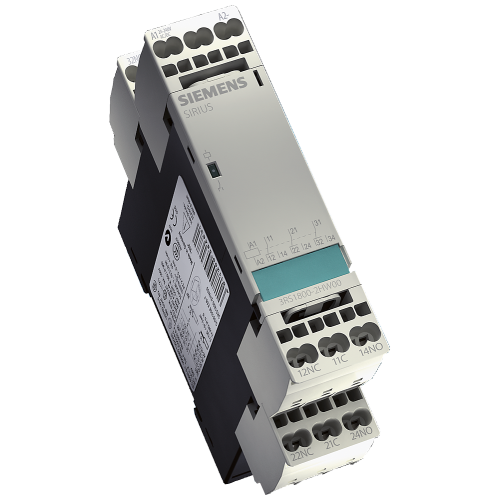

3RS18002HQ00

!!! Phased-out product !!! The preferred successor is 3RQ2000-2CW00. Coupling relays in industrial e

Manufacturer's No: 3RS1800-2HQ00     Manufacturer: Siemens
!!! Phased-out product !!! The preferred successor is 3RQ2000-2CW00. Coupling relays in industrial e

Availability On Request

POA

This product has been superseded by

3RQ20002CW00

Please check compatibility before purchasing.

  • Coupling relays in industrial enclosure
  • 3 change-over contacts
  • Combination voltage: 24 V and 110-120 V AC/DC
  • Spring-type terminal

Follow-up article



Product

Manufacturer Material ID -
3RS1800-2HQ00
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Nominal current -
- Ampere
Type of switch contact -
UN
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20

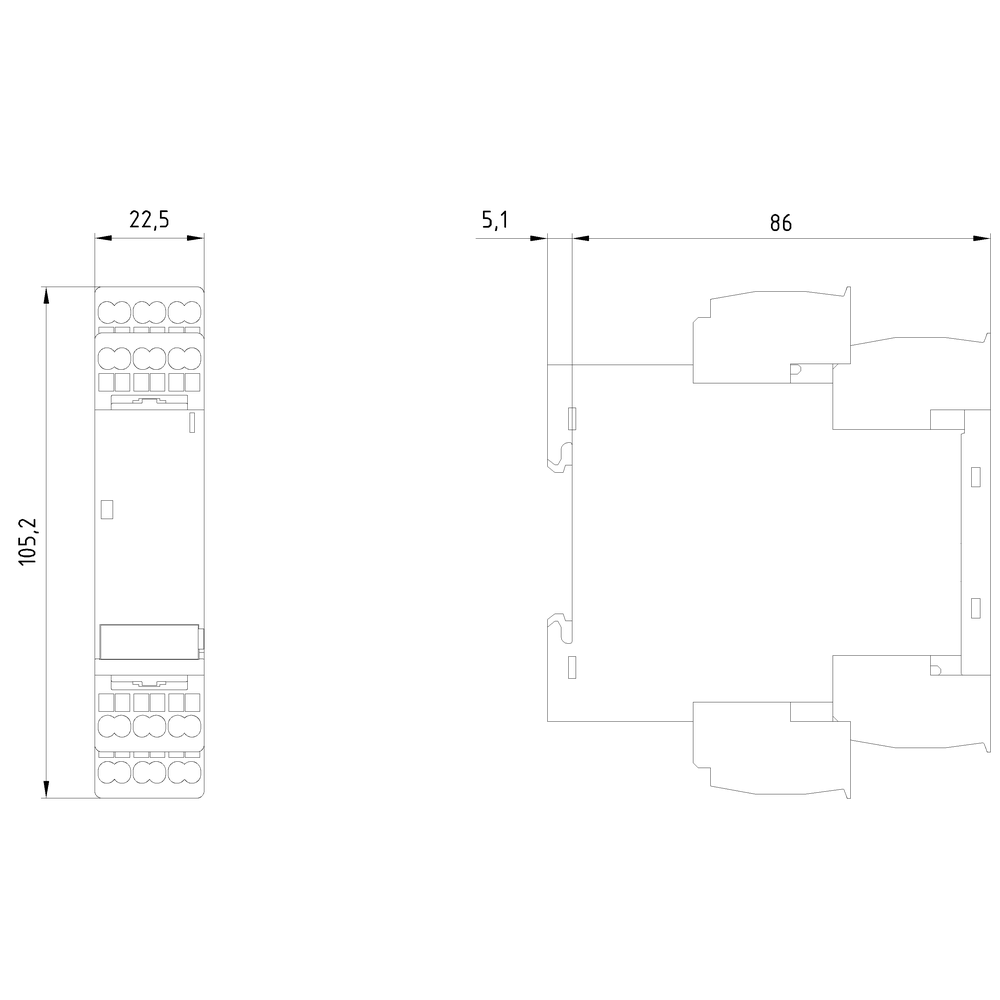

Depth -
91 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
103 Millimetre
Number of contacts as change-over contact -
3
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Spring clamp connection
Voltage type for actuating -
AC/DC
Width -
22.5 Millimetre

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3RQ20002CW00

Please check compatibility before purchasing.
