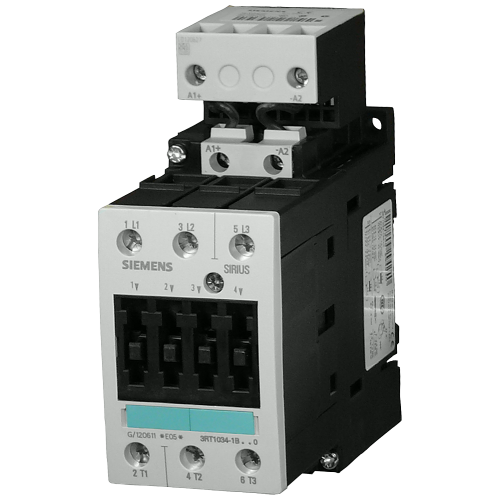

3RT10341XF400LA2

Traction contactor, AC-3 32 A, 15kW / 400 V 110 V DC, 0.7-1.25* Us, 3-pole, Size S2, Screw terminal

Manufacturer's No: 3RT1034-1XF40-0LA2     Manufacturer: Siemens
Traction contactor, AC-3 32 A, 15kW / 400 V 110 V DC, 0.7-1.25* Us, 3-pole, Size S2, Screw terminal

Availability On Request

POA
  • Traction contactor
  • AC-3 32 A, 15 kW / 400 V, 110 V DC
  • 3-pole, Size S2
  • Screw terminal
  • Integrated varistor
  • Phased-out product
  • Successor: SIRIUS 3RT2
  • Preferred successor type: 3RT2035-1XF40-0LA2


Product

Manufacturer Material ID -
3RT1034-1XF40-0LA2
Net Weight -
1.51kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation power NEMA -
- Kilowatt
Modular version -
Rated operation power at AC-3, 400 V -
15 Kilowatt
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated operation current Ie at AC-3, 400 V -
32 Ampere
Rated operation current Ie at AC-1, 400 V -
50 Ampere
Rated control supply voltage Us at DC -
110 Volt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Rated operation current Ie at AC-4, 400 V -
29 Ampere
Rated operation power at AC-4, 400 V -
15 Kilowatt
