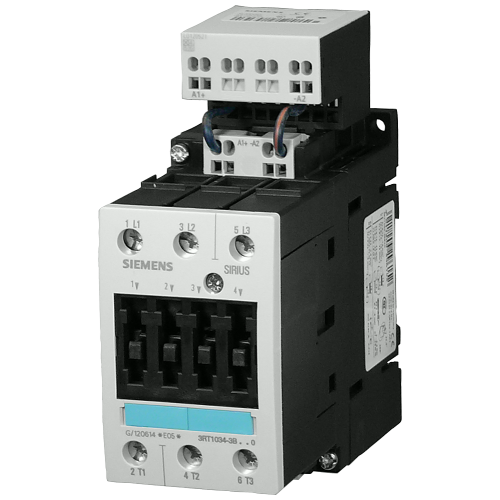

3RT10353XF400LA2

Traction contactor, AC-3 40 A, 18.5kW / 400 V 110 V DC, 0.7-1.25* Us, 3-pole, Size S2 Spring-type t

Manufacturer's No: 3RT1035-3XF40-0LA2     Manufacturer: Siemens
Traction contactor, AC-3 40 A, 18.5kW / 400 V 110 V DC, 0.7-1.25* Us, 3-pole, Size S2 Spring-type t

Availability On Request

POA
  • Traction contactor for AC-3 applications
  • Rated current: 40 A
  • Power rating: 18.5 kW at 400 V, 110 V DC
  • Operating voltage: 0.7-1.25 times the rated voltage
  • Configuration: 3-pole, Size S2
  • Terminal type: Spring-type
  • Integrated electronic control unit and varistor
  • Phased-out product, successor is SIRIUS 3RT2
  • Preferred successor model: 3RT2035-3XF40-0LA2

Follow-up article

Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT1035-3XF40-0LA2
Net Weight -
1.52kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at DC -
110 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at DC -
110 Volt
Rated operation current Ie at AC-1, 400 V -
60 Ampere
Rated operation current Ie at AC-3, 400 V -
40 Ampere
Rated operation current Ie at AC-4, 400 V -
35 Ampere
Rated operation power at AC-3, 400 V -
18.5 Kilowatt
Rated operation power at AC-4, 400 V -
18.5 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
