3RT10361AP043MA0

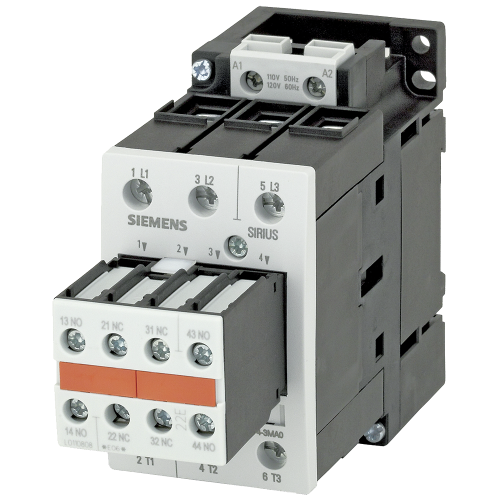

Power contactor, AC-3 50 A, 22kW / 400 V 230 V AC, 50 Hz, 2 NO + 2 NC, 3-pole, Size S2, Screw termi

Manufacturer's No: 3RT1036-1AP04-3MA0     Manufacturer: Siemens
Power contactor, AC-3 50 A, 22kW / 400 V 230 V AC, 50 Hz, 2 NO + 2 NC, 3-pole, Size S2, Screw termi

Availability On Request

POA
  • Power contactor for AC-3 applications
  • Rated current: 50 A
  • Rated power: 22 kW at 400 V, 230 V AC, 50 Hz
  • Configuration: 2 normally open (NO) + 2 normally closed (NC) contacts
  • Number of poles: 3
  • Size: S2
  • Terminal type: Screw terminal
  • Suitable for SUVA applications
  • Phased-out product, successor is SIRIUS 3RT2


Product

Manufacturer Material ID -
3RT1036-1AP04-3MA0
Net Weight -
0.93kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation power NEMA -
- Kilowatt
Modular version -
Rated operation power at AC-3, 400 V -
22 Kilowatt
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Number of auxiliary contacts as normally open contact -
2
Number of auxiliary contacts as normally closed contact -
2
Rated operation current Ie at AC-3, 400 V -
50 Ampere
Rated operation current Ie at AC-1, 400 V -
60 Ampere
Rated control supply voltage Us at AC 50HZ -
230 Volt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
Rated operation current Ie at AC-4, 400 V -
41 Ampere
Rated operation power at AC-4, 400 V -
22 Kilowatt
