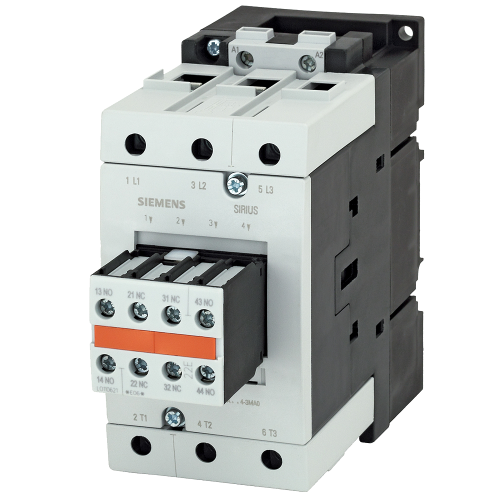

3RT10461AP043MA0

Power contactor, AC-3 95 A, 45kW / 400 V 230 V AC, 50 Hz, 2 NO + 2 NC 3-pole, Size S3 Screw termina

Manufacturer's No: 3RT1046-1AP04-3MA0     Manufacturer: Siemens
Power contactor, AC-3 95 A, 45kW / 400 V 230 V AC, 50 Hz, 2 NO + 2 NC 3-pole, Size S3 Screw termina

Availability On Request

POA
  • Power contactor
  • AC-3 95 A
  • 45 kW / 400 V, 230 V AC, 50 Hz
  • 2 NO + 2 NC
  • 3-pole, Size S3
  • Screw terminal
  • Captive auxiliary switch for SUVA applications
  • Phased-out product
  • Successor: SIRIUS 3RT2
  • Preferred successor type: 3RT2046-1AP04-3MA0


Product

Manufacturer Material ID -
3RT1046-1AP04-3MA0
Net Weight -
1.93kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation power NEMA -
- Kilowatt
Modular version -
Rated operation power at AC-3, 400 V -
45 Kilowatt
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Number of auxiliary contacts as normally open contact -
2
Number of auxiliary contacts as normally closed contact -
2
Rated operation current Ie at AC-3, 400 V -
95 Ampere
Rated operation current Ie at AC-1, 400 V -
120 Ampere
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
Rated operation current Ie at AC-4, 400 V -
80 Ampere
Rated operation power at AC-4, 400 V -
45 Kilowatt

Availability On Request

POA
