3RT10766LA06

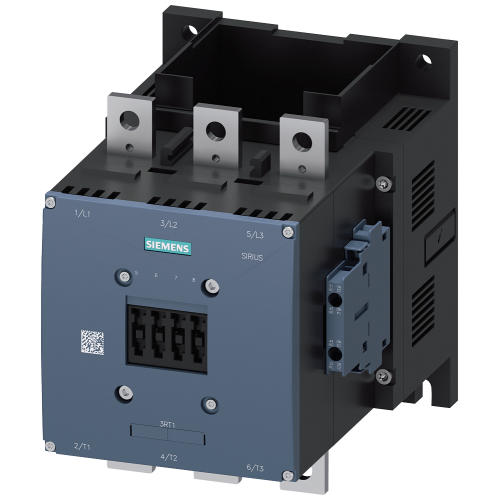

Power contactor, AC-3 500 A, 250kW / 400 V without coil Auxiliary contacts 2 NO + 2 NC 3-pole, size

Manufacturer's No: 3RT1076-6LA06     Manufacturer: Siemens
Power contactor, AC-3 500 A, 250kW / 400 V without coil Auxiliary contacts 2 NO + 2 NC 3-pole, size

Availability On Request

£2,273.40
  • Power contactor for AC-3e/AC-3 applications
  • Rated at 500 A and 250 kW / 400 V
  • 3-pole configuration without operating mechanism
  • Includes 2 NO + 2 NC auxiliary contacts
  • Main circuit connection via busbar
  • Auxiliary circuit connection via screw terminal

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request

Spare part

Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Product video
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT1076-6LA06
Net Weight -
9.46kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Rated operation current Ie at AC-1, 400 V -
610 Ampere
Rated operation current Ie at AC-3, 400 V -
500 Ampere
Rated operation current Ie at AC-4, 400 V -
430 Ampere
Rated operation power at AC-3, 400 V -
250 Kilowatt
Rated operation power at AC-4, 400 V -
250 Kilowatt
Rated operation power NEMA -
294.1995 Kilowatt
Type of electrical connection of main circuit -
Rail connection
Voltage type for actuating -
AC/DC

Availability On Request

£2,273.40
