3RT10766XJ460LA2

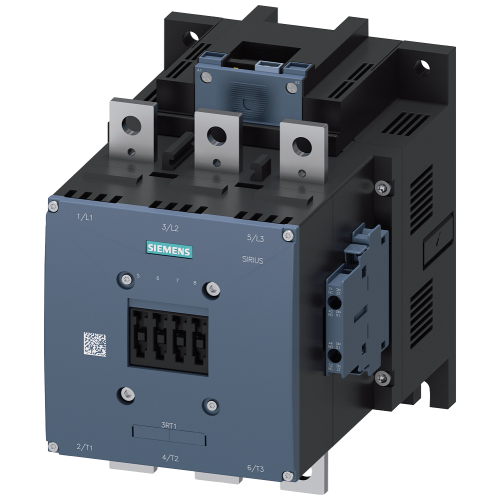

Contactor, AC-3e, 250 kW/400 V, 72 V DC, 0.7-1.25*Us, 2 NO + 2 NC, 3-pole

Manufacturer's No: 3RT1076-6XJ46-0LA2     Manufacturer: Siemens
Contactor, AC-3e, 250 kW/400 V, 72 V DC, 0.7-1.25*Us, 2 NO + 2 NC, 3-pole

Availability On Request

£3,744.82
  • Power contactor for AC-3 applications
  • Rated current: 500 A
  • Rated power: 250 kW at 400 V
  • Control voltage: 72 V DC
  • PLC input voltage: 24-110 V DC
  • 3-pole contactor with 2 NO + 2 NC auxiliary contacts
  • Electronic drive with busbar main circuit
  • Auxiliary circuit with screw terminal connection
  • Complies with IEC 60077 standards

Accessories

Spare part

Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Product video
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT1076-6XJ46-0LA2
Net Weight -
1.03kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
72 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at DC -
72 Volt
Rated operation current Ie at AC-1, 400 V -
610 Ampere
Rated operation current Ie at AC-3, 400 V -
500 Ampere
Rated operation current Ie at AC-4, 400 V -
430 Ampere
Rated operation power at AC-3, 400 V -
250 Kilowatt
Rated operation power at AC-4, 400 V -
250 Kilowatt
Rated operation power NEMA -
294.1995 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC

Availability On Request

£3,744.82
