3RT14566LA06

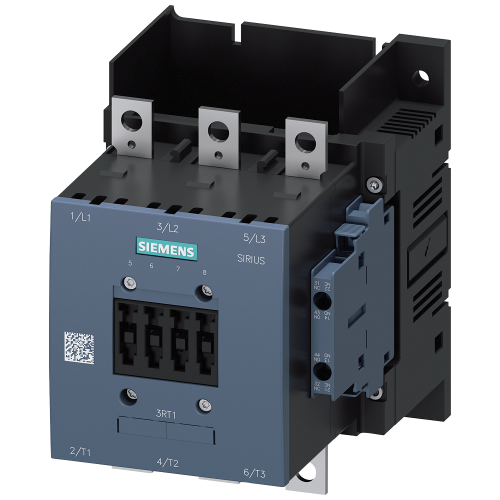

Contactor, AC-1, 275 A/690 V/40 °C, 3-pole, w/o operating mechanism, 2 NO+2 NC

Manufacturer's No: 3RT1456-6LA06     Manufacturer: Siemens
Contactor, AC-1, 275 A/690 V/40 °C, 3-pole, w/o operating mechanism, 2 NO+2 NC

Availability On Request

£432.81
  • Power contactor for AC-1 applications
  • 3-pole contactor
  • Rated at 275 A and 690 V
  • Operating temperature of 40°C
  • Main circuit connection via busbar
  • Auxiliary circuit connection via screw terminal
  • Drive without auxiliary contacts
  • 2 Normally Open (NO) and 2 Normally Closed (NC) contacts

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request

Spare part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT1456-6LA06
Net Weight -
2.84kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Voltage type for actuating -
UN
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Modular version -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated operation current Ie at AC-1, 400 V -
275 Ampere
Rated operation current Ie at AC-3, 400 V -
97 Ampere
Rated operation power NEMA -
55.16240625 Kilowatt
Type of electrical connection of main circuit -
Rail connection

Availability On Request

£432.81
