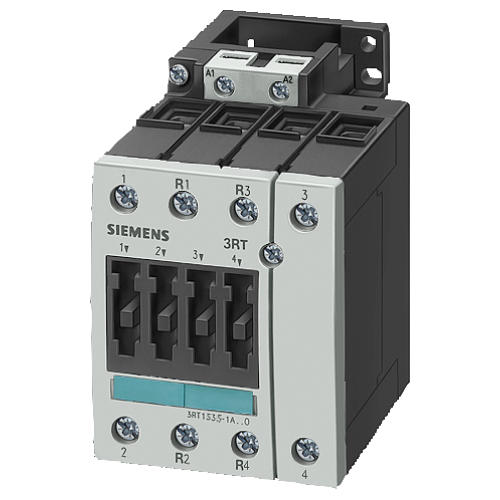

3RT15351AP60

Power contactor, AC-3 40 A, 18.5kW / 400 V 240 V AC, 60 Hz 4-pole, 2 NO + 2 NC Size S2, Screw termi

Manufacturer's No: 3RT1535-1AP60     Manufacturer: Siemens
Power contactor, AC-3 40 A, 18.5kW / 400 V 240 V AC, 60 Hz 4-pole, 2 NO + 2 NC Size S2, Screw termi

Availability On Request

POA
  • Power contactor
  • AC-3 40 A
  • 18.5 kW / 400 V 240 V AC
  • 60 Hz
  • 4-pole
  • 2 NO + 2 NC
  • Size S2
  • Screw terminals
  • Phased-out product
  • Successor is SIRIUS 3RT2


Product

Manufacturer Material ID -
3RT1535-1AP60
Net Weight -
0.98kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power NEMA -
- Kilowatt
Modular version -
Rated operation power at AC-3, 400 V -
18.5 Kilowatt
Number of main contacts as normally open contact -
2
Number of normally closed contacts as main contact -
2
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated operation current Ie at AC-3, 400 V -
40 Ampere
Rated operation current Ie at AC-1, 400 V -
60 Ampere
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
